Description

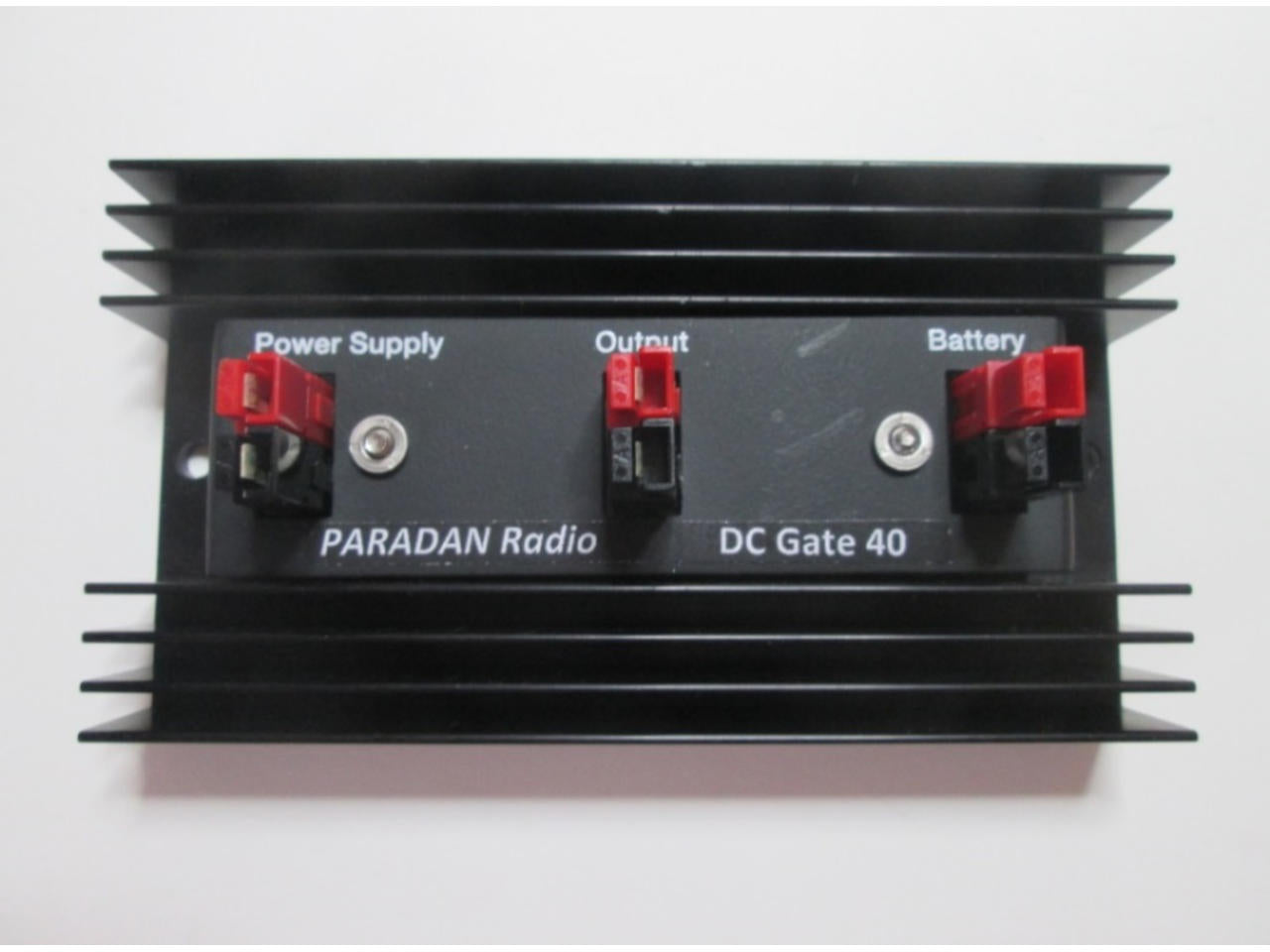

The Paradan Radio DC Gate 40 Plus, is a 13.8 volt battery back-up system for powering your radio station, “go box”, or RV. It can output up to 40 amperes from either the power supply or the battery. This is fully compatible with all 12V Bioenno Power LiFePO4 batteries (as well as GEL or AGM batteries). Whenever the AC power is lost, the diode gate switches from the power supply to the battery, instantaneously. When the power comes back on, the built-in 2 Amp battery charger restores the charge and keeps the battery topped up. It is solidly made on a heatsink and connections are Powerpoles®. Comes with 3 Powepole pairs.
Specifications:
Power Supply Voltage: 13.8 - 14.6 volts
Battery: “12volt” GEL, or AGM type lead-acid batteries, any amp-hour rating
Bioenno Power Lithium-Iron- Phosphate batteries, any amp-hour rating
Current: 40 amperes maximum
Connectors: Anderson Powerpoles ® registered trademark of Anderson
Diodes: Two 80 Amp Schottky, IRF 80CPQ030
Diode Drop: 0.3 volts @10Amps
Charger: 2-Amp, current controlled FET, 0.1 ohm sensing resistor
Size: 5.25 x 2.75 x 1.0 in., Powerpoles prodrude 0.5 in.
Weight: 9.5 oz.
