Description
Product Overview

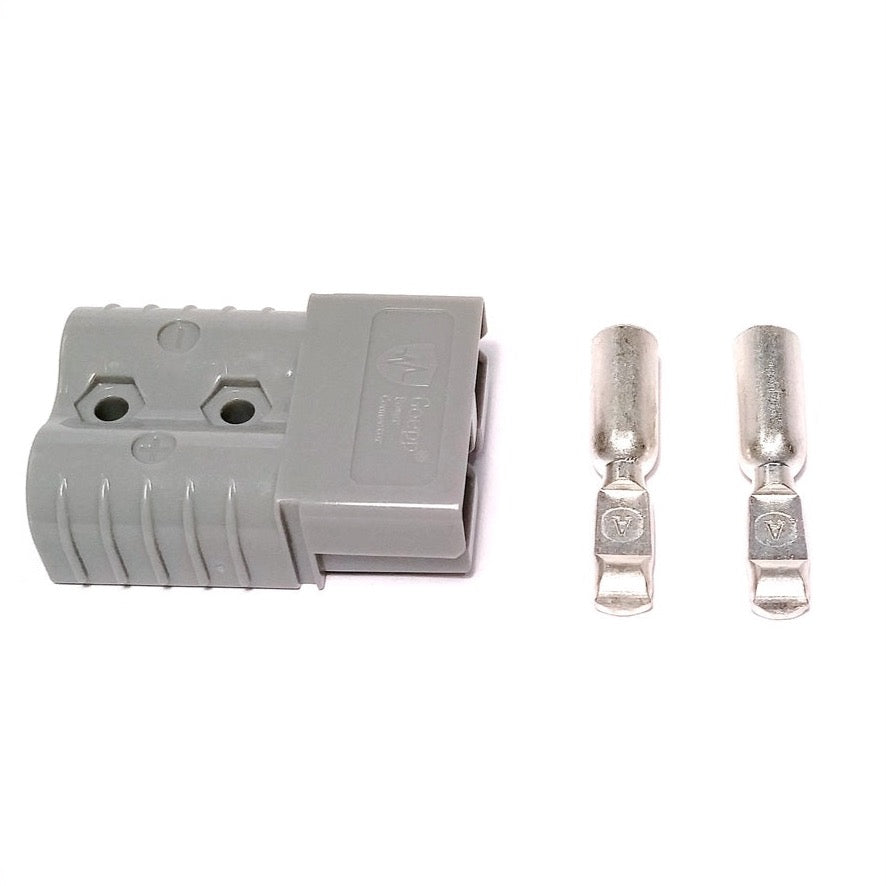

The Bioenno Power B-SB120 is a heavy-duty SB120 Grey Anderson Powerpole connector, rated for 120A at 600VDC. Designed for robust and high-current applications, this connector is perfect for demanding environments such as electric vehicles, marine systems, UPS communication power supplies, industrial machinery, and high-capacity charging circuits.
Manufactured with impact-resistant polycarbonate housing and silver-plated solid copper contacts, the SB120 ensures low contact resistance, superior conductivity, and exceptional durability even under harsh operating conditions.
Key Features
-
Performance and Durability
-
Rated Current: 120A
-
Rated Voltage: 600 VDC
-
1 Piece Per Package
-
-
Material and Construction
-
Housing: Impact-resistant polycarbonate
-
Contacts: Silver-plated solid copper
-
Heat-treated flared barrels for secure cable connections
-
Self-cleaning contact design prevents corrosion and arcing
-
-
Application Versatility
-
Supports high-current quick-disconnects
-
Compatible with EVs, forklifts, marine equipment, industrial machines, UPS systems, and more
-
Important Notes
-
Designed for both plug and socket configurations—pair using same-color connectors
-
Not intended for low-amperage circuits
-
Built to withstand high shock environments and frequent connect/disconnect use
