Description
Extension Cord Warning:
If you are using a 100 ft. extension cord with the AC to DC Bioenno Power metal box charger supplied with the battery or bought the AC to DC wall charger separately, or using Minn Kota PCL, or Noco Genius, or other LiFePO4 wall chargers, use AWG 10 extension cords only for 100 ft runs. All other common 100 ft. extension cords that are AWG 12, 14, 16 will not work with this charger and will not correctly charge the battery. These chargers pull too much current and require thick extension cords, if used. This is required, or connect directly to the AC outlet.

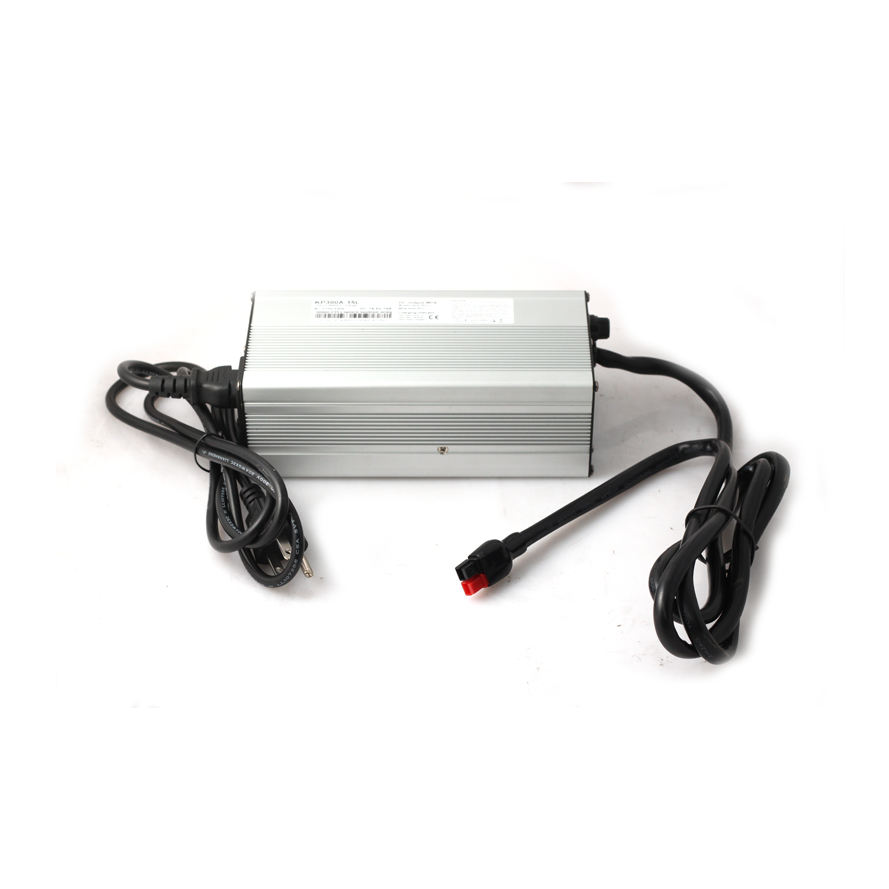

This 14.6VDC, 15A AC-to-DC Charger, Model BPC-1515A, is an AC-to-DC charger for use in charging 12V LiFePO4 batteries. This charger has an Anderson Powerpole plug for charging Bioenno Power 12V, 40Ah/50Ah/100Ah LiFePO4 batteries in the PVC Pack. Please ensure that the LiFePO4 batteries include a PCM/BMS when using this particular charger.
Specifications
Input: 110 VAC
Output: 14.6VDC, 15A (CC/CV Charge Profile)

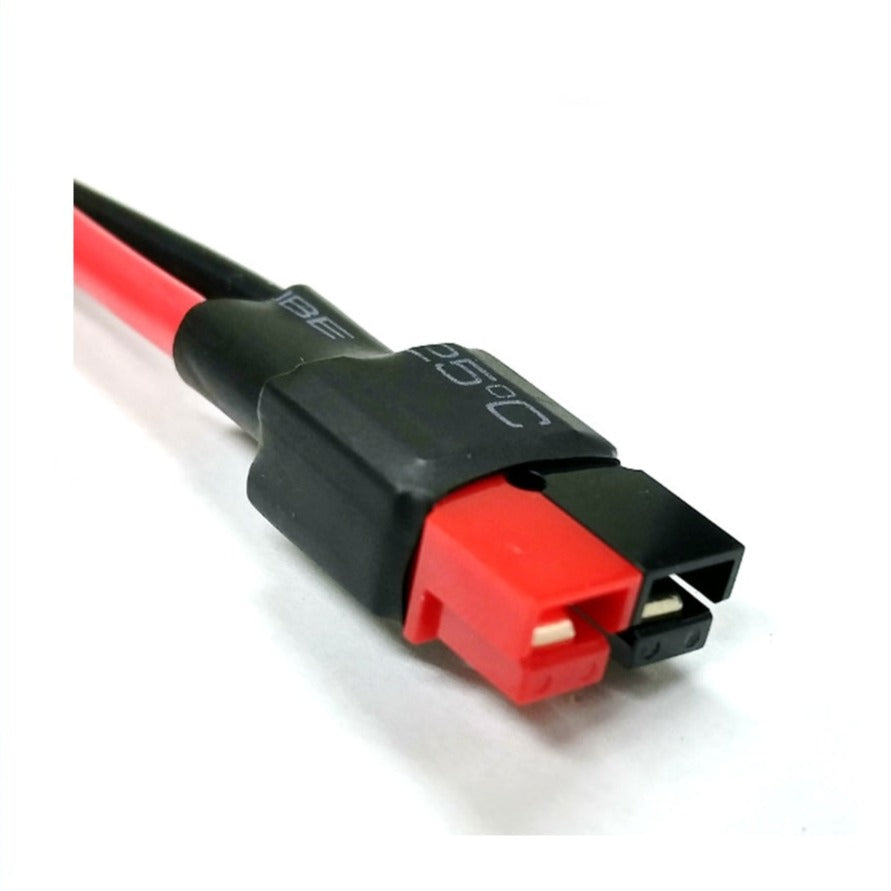

Connector: Anderson Powerpole
Dimensions:(L x W x H) 6.7 in. x 3.5 in. x 2.0 in. (170 mm x 90 mm x 50 mm)
Weight: 2.2 lbs. (1 kg.)
