Description
BLF-4830A User Manual | Material Safety Data Sheet for LiFePO4
Product Overview

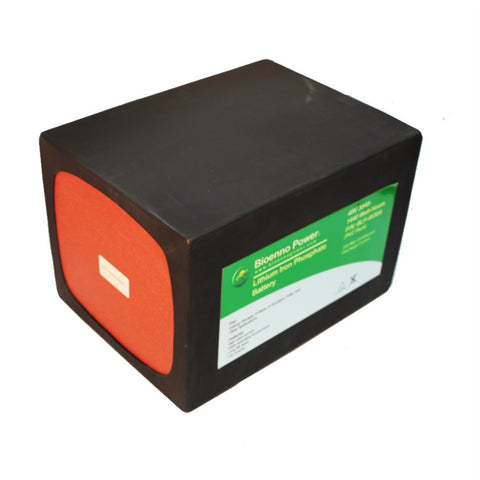

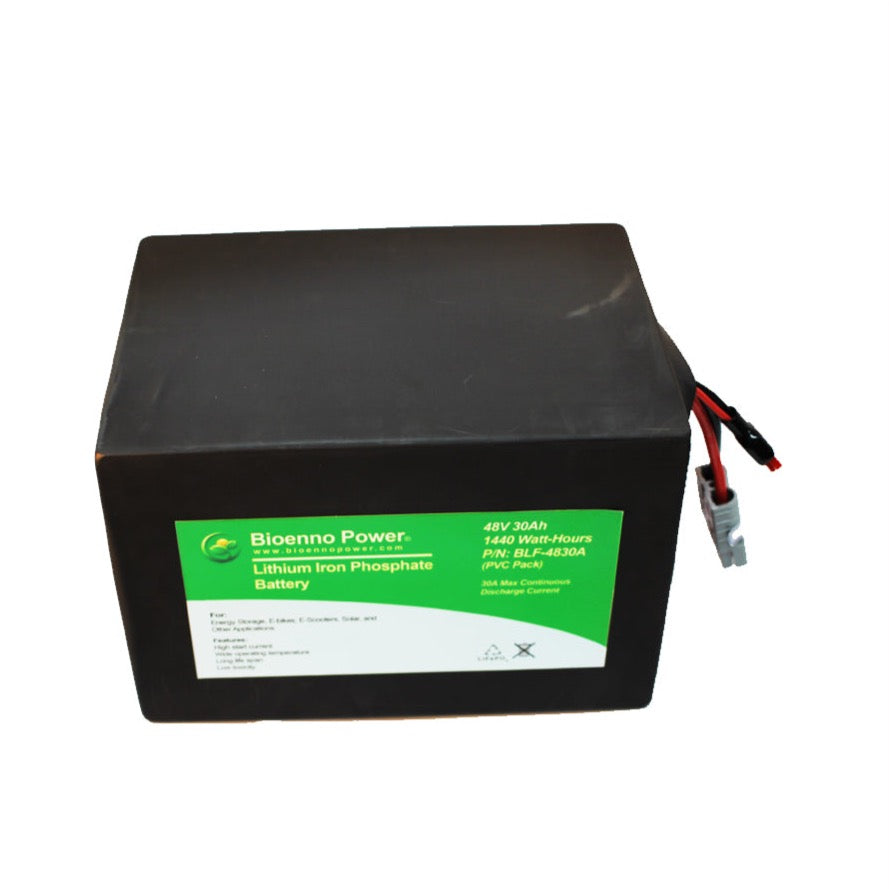

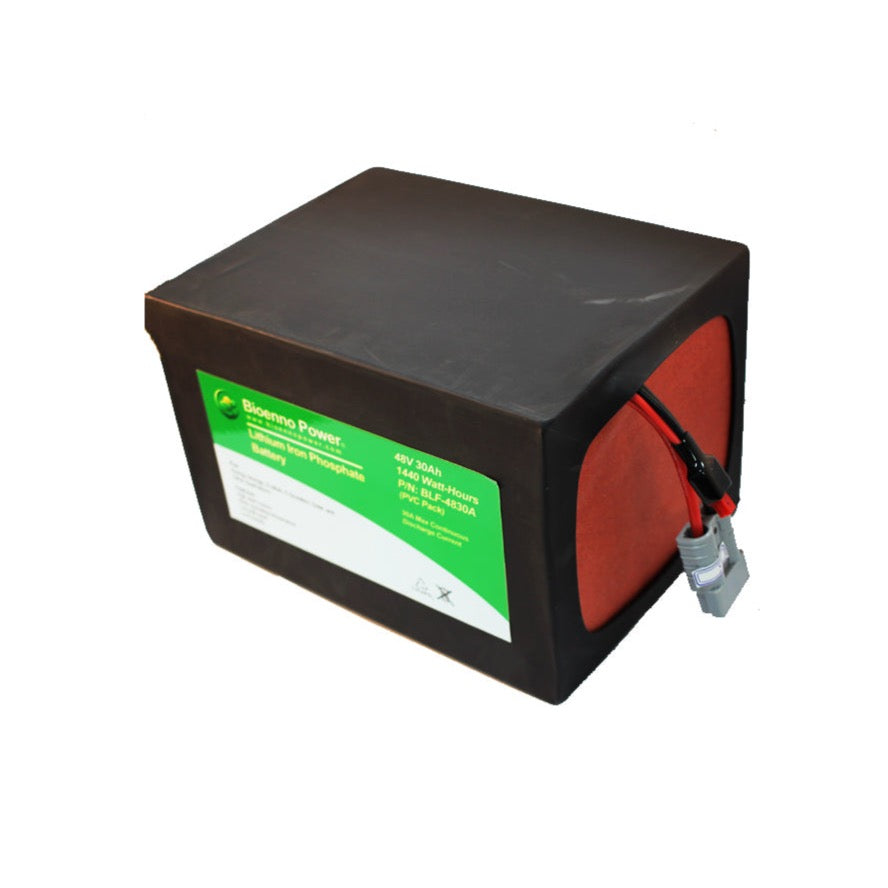

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-4830A is a high-performance 48V 30Ah battery designed for compact, lightweight 48V power applications. It’s an excellent choice for golf carts, pedicabs, solar systems, e-bikes, e-scooters, and robotics where high voltage and reliable power delivery are essential.
Key Features
1. Compact 48V Power Delivery
-
Continuous Discharge: 30A
-
Peak Discharge: 60A (30 sec)
-
Power Output: 1440 Watts
-
Size: 9.75 in. × 7.5 in. × 6.5 in.
-
Weight: 31.1 lbs. (14.1 kg)
2. Smart and Safe Operation
-
Built-in PCM for internal cell balancing
-
Complete protection: overcurrent, over/under voltage, and short circuit
-
Integrated charge circuitry
-
No EMI/RFI — silent operation

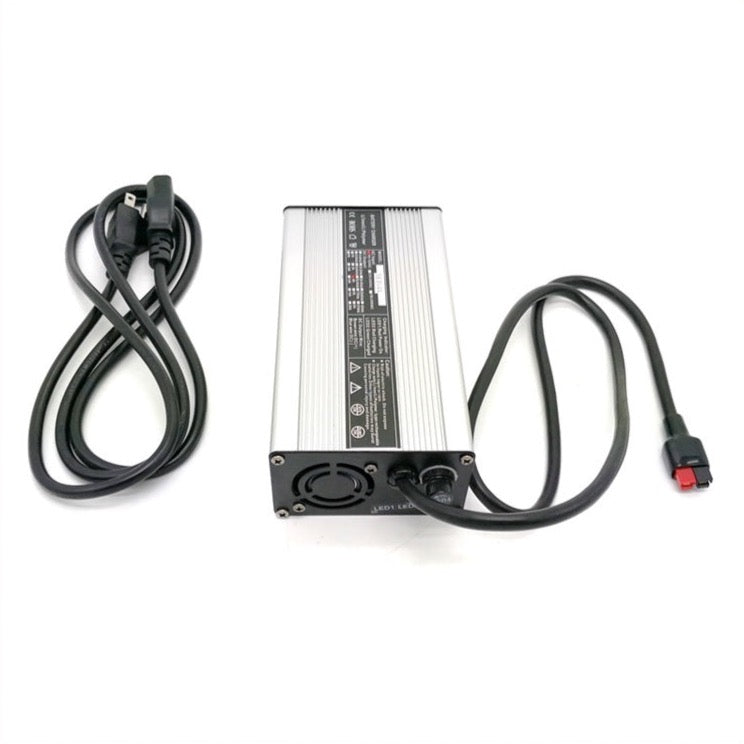

3. Ready-to-Use Charging
-
Output Voltage: 58.2VDC at 4A
-

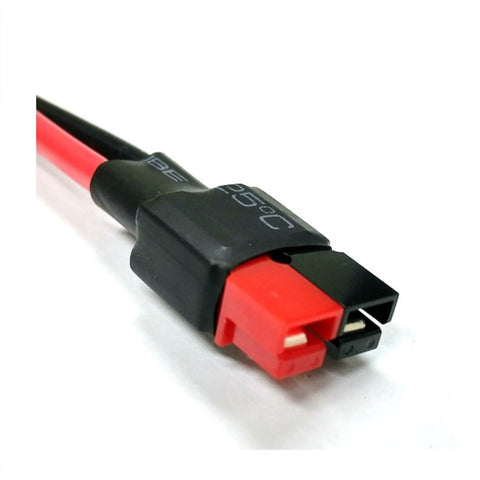

Connector: Anderson Powerpole PP45
-
Charger Model: BPC-4804A
-
Input: 120VAC/220VAC
BLF-4830A Battery Specifications
-
Voltage: 48V
-
Capacity: 30Ah
-
Case Type: PVC Pack
-
Charge Connector: Anderson Powerpole PP45
-

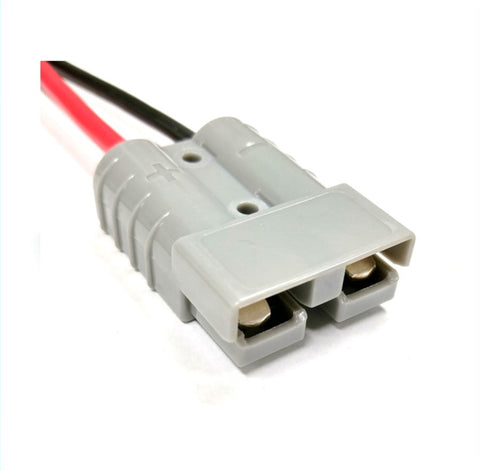

Discharge Connector: Anderson Powerpole SB50
-
Max Continuous Power: 1440 Watts
Recommended Applications
-
Pedicabs, E-bikes, e-scooters
-
Solar and backup power systems
-
Robotics and mobile 48V systems
Policy Details
-
Shipping: Standard
-
Returns/Exchange: 30 Days
-
Warranty: See Separate Warranty Page
