36V, 30Ah LFP Battery (PVC, BLF-3630A)

Please select below:: Battery Only
Sale price$799.99


Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.





Price: $799.99 (battery only), $839.99 (battery+charger)

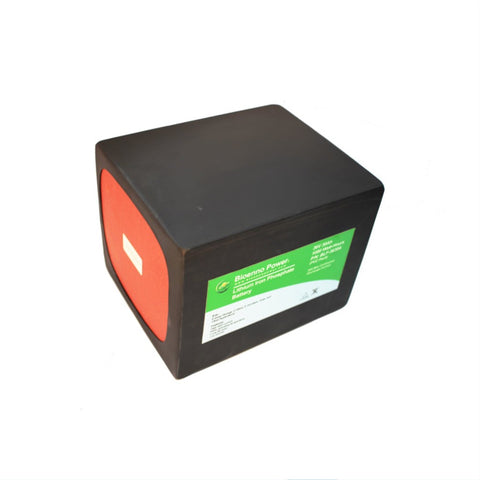

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3630A is a state of the art 36V 30Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, and various robotics operating at 36V. This battery features a small and compact form factor designed for the smallest footprint. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 6A, with DC barrel plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-3630A User Manual [PDF]

BLF-3630A Battery Specifications
Voltage: 36V
Capacity: 30Ah
Case Type: PVC Pack

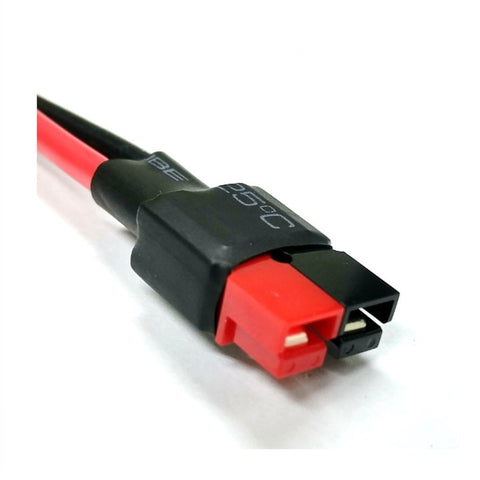

Charge Connector:  Anderson Powerpole PP45
Discharge Connector:  Anderson Powerpole SB50
Maximum Continuous Discharge Current: 30A (Make sure your load consumes less than 30A)
Maximum Peak Discharge Current: 60A (5 sec.)
Maximum Continuous Power:  1080 Watts (36V x 30A = 1080 Watts) (Make sure your load consumes less than 1080 Watts)
Dimensions:(L x W x H) 9.5 in. x 7.2 in. x 5.8 in. (241 mm x 182 mm x 147 mm)
Weight: 22.9 lbs.  (10.4 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 120VAC/220 VAC
Output Voltage: 43.8VDC
Current: 4A
Connector:  Anderson Powerpole
Model Number:  BPC-3604A

Shipping: Standard
Returns/Exchange: 30 Days
Warranty: See Separate Warranty Page
