Description
User Manual – BLF-3610A | Material Safety Data Sheet for LiFePO4 | UN383_BLF-3610A
Product Overview

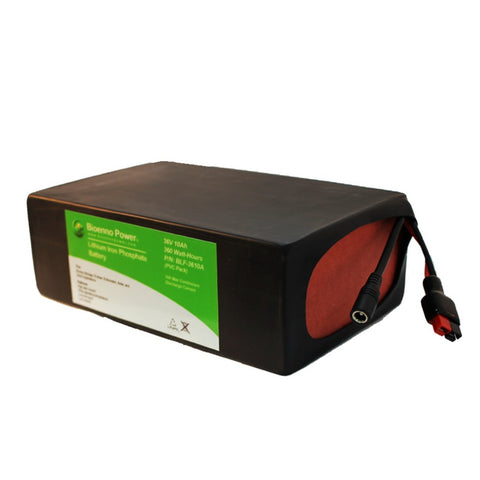

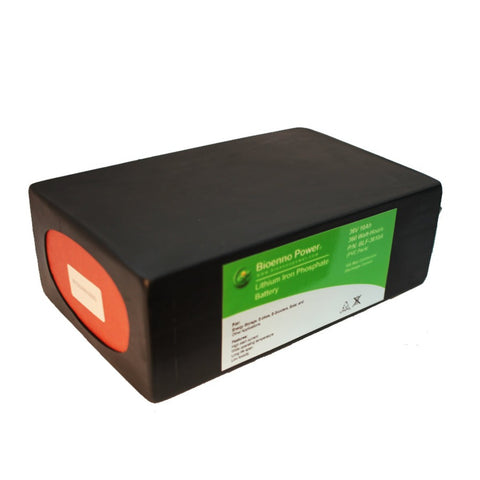

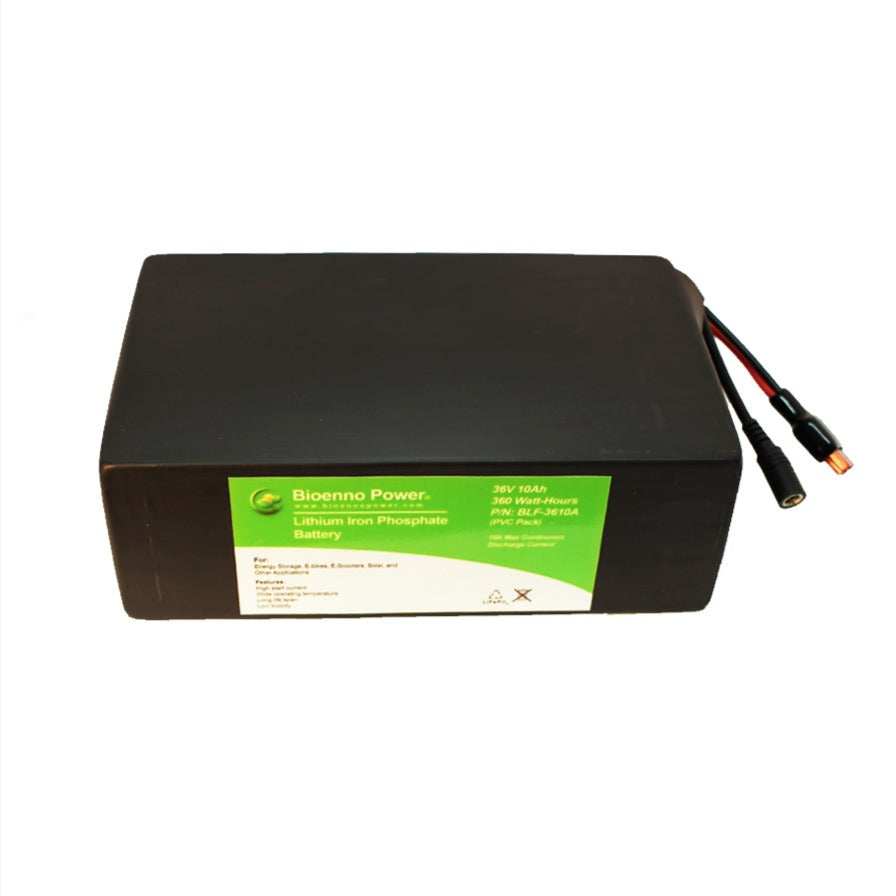

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3610A is a compact, high-performance 36V 10Ah battery engineered for higher-voltage systems requiring clean, stable energy. With 360W of output power and a space-saving PVC design, this battery is ideal for e-bikes, electric scooters, robotics, and other 36V platforms. Built-in PCM protection ensures safety, long life, and EMI/RFI-free operation.
Key Features
1. Reliable High-Voltage Output
-
Max Continuous Discharge: 10A
-
Peak Discharge Current: 20A (5 seconds)
-
Max Continuous Power: 360 Watts
-
Ideal for 36V motor-driven systems and mobility solutions
2. Integrated PCM Protection
-
Protects against overcurrent, overvoltage, undervoltage, and short circuits
-
Internal cell balancing and built-in charge control ensure optimal battery health
3. Lightweight, Compact Form Factor
-
Case Type: PVC Pack
-
Dimensions: 8.3 in. × 5.2 in. × 3.1 in. (211 mm × 131 mm × 78 mm)
-
Weight: 7.6 lbs. (3.5 kg)
-

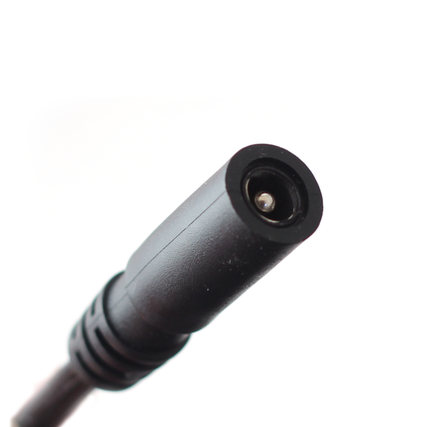

Charge Connector: DC Barrel Plug
-

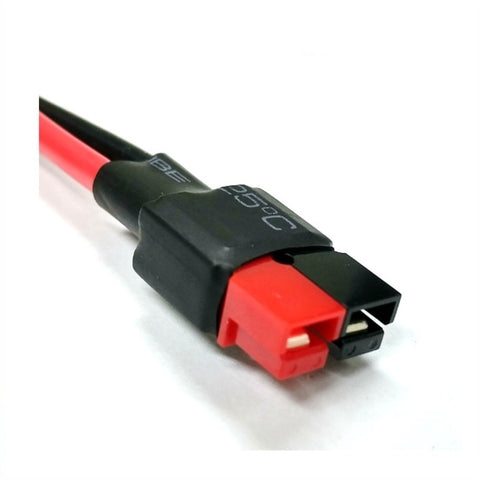

Discharge Connector: Anderson Powerpole (PP45)

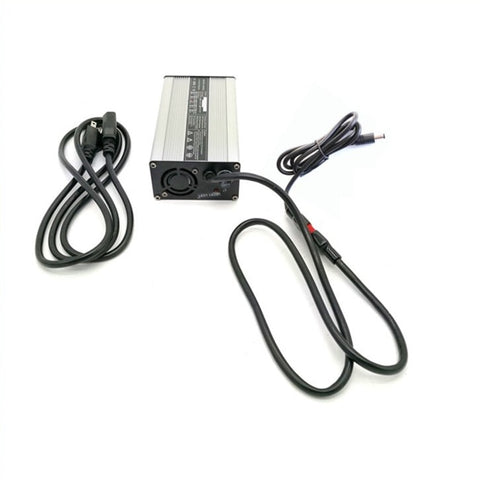

4. Compatible Charger Specifications
-
Model: BPC-3602DC
-
Input: 110VAC / 220VAC
-
Output: 43.8VDC at 2A
-
Connector: DC Plug
-
Battery Specifications – BLF-3610A
-
Voltage: 36V
-
Capacity: 10Ah
-
Output Power: 360 Watts
-
Built-in PCM with safety protections and charging management
-
Lightweight and compact for easy integration
Benefits
-
Perfect for high-efficiency 36V electronics
-
Maintenance-free lithium chemistry
-
Long-lasting with over 2000 charge cycles
-
No EMI or RFI — safe for sensitive systems
Ideal Applications
-
E-bikes and 36V electric scooters
-
Robotics and autonomous platforms
-
Light industrial tools and field devices
-
Mobile energy systems and power carts
Installation Note
Ensure connectors are secure and compatible before powering your system for optimal safety and performance.
This PVC version is not intended for use in a marine or wet environment application. Use the ABS Version for marine or wet environment applications.
