Description
Extension Cord Warning:
If you are using a 100 ft. extension cord with the AC to DC Bioenno Power metal box charger supplied with the battery or bought the AC to DC wall charger separately, or using Minn Kota PCL, or Noco Genius, or other LiFePO4 wall chargers, use AWG 10 extension cords only for 100 ft runs. All other common 100 ft. extension cords that are AWG 12, 14, 16 will not work with this charger and will not correctly charge the battery. These chargers pull too much current and require thick extension cords, if used. This is required, or connect directly to the AC outlet.
Product Overview

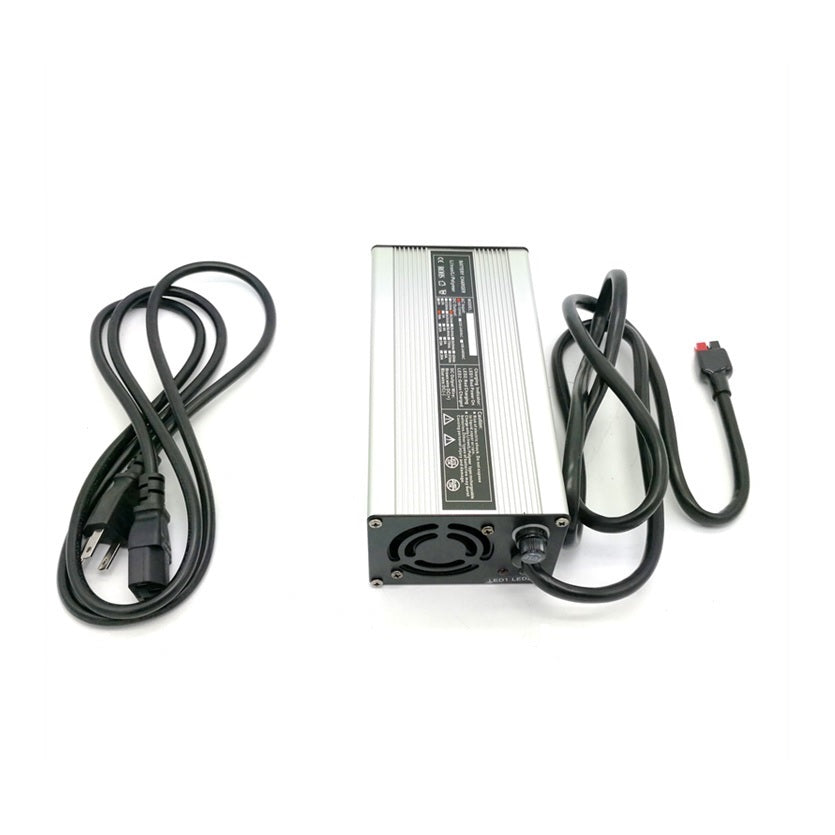

The Bioenno Power 29.2V, 10A AC-to-DC Charger (Model BPC-2410A) is designed to safely and efficiently charge 24V LiFePO4 battery systems. With an output of 29.2VDC at 10A, this charger is ideal for applications that demand quick, high-current charging. Featuring Anderson Powerpole connectors, it ensures a secure and user-friendly charging interface.
Key Features
1. Fast, Safe Charging
-
Output Voltage: 29.2VDC
-
Output Current: 10A
-
Charge Profile: Constant Current / Constant Voltage (CC/CV)
-
Designed for use with LiFePO4 batteries equipped with PCM/BMS protection
2. Compact, Durable Design
-
Input Voltage: 110 VAC
-
Dimensions: 6.7 in. x 3.5 in. x 2.0 in. (170 mm x 90 mm x 50 mm)
-
Weight: 2.2 lbs. (1 kg)
3. Anderson Powerpole Connection
-
Connector Type: Anderson Powerpoles
-
Allows for easy, secure, and quick battery connection and removal
Recommended Applications
Perfect for use with 24V lithium iron phosphate batteries in energy storage systems, mobility and robotics platforms, and off-grid power solutions that require reliable high-current charging.
Policy Information
-
Shipping: Standard
-
Returns/Exchange: 30 Days
-
Warranty: See Separate Warranty Page
