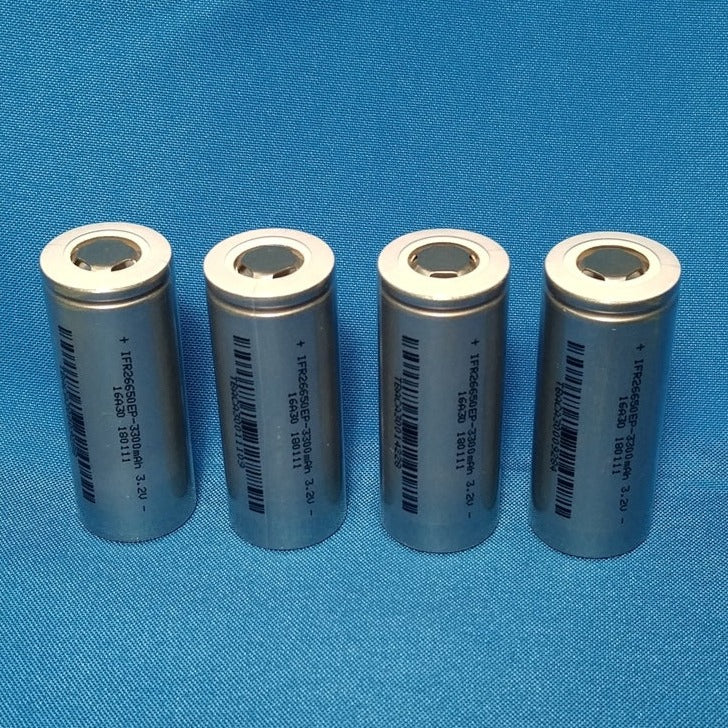

26650, 3.2V, 3300 mAh, 2C LFP Cells (4 pcs)

26650, 3.2V, 3300 mAh, 2C LFP Cells (4 pcs)


Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.

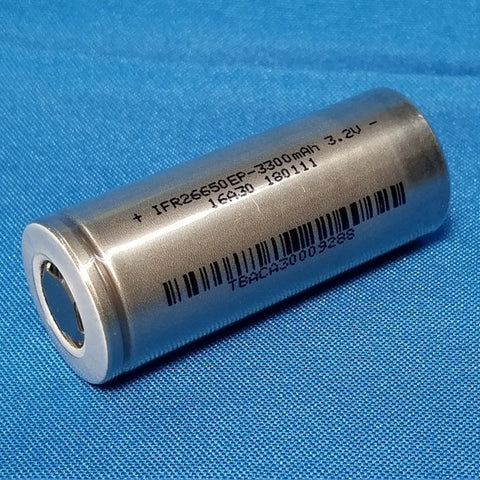

The Bioenno Power 26650, 3.2V, 3300 mAh LiFePO4 cells are excellent for a variety of applications including for assembling a variety of LiFePO4 battery packs.  These cells provide 2C maximum continuous discharge current.  The cells are sold in a pack of 4.  Please note that these cells must be assembled in combination with a PCM/BMS into a battery pack by qualified users. The cells are not intended for use without protection.

Rated Capacity:  3300 mAh
Nominal Voltage:  3.2VDC
Charging Voltage:  3.65VDC
Internal Impedance:  < 40 milli-ohms
Standard Charge:  Constant Current at 0.2C, Constant Voltage at 3.65 VDC, 0.01C cut-off
Standard Discharge:  Constant Current at 0.2C, Ending Voltage:  2.0VDC
Maximum Continuous Charge Current:  1C
Maximum Continuous Discharge Current:  2C
Operation Temperature:  Charging - 0 to 45 deg C; Discharging -20 deg C to 60 deg C
Storage Temperature Range:  -20 deg C to 25 deg C
Cell Dimensions:  65 mm x 26 mm (Height x Diameter)


Shipping: Standard
Returns/Exchange: 30 Days
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
