Product Overview

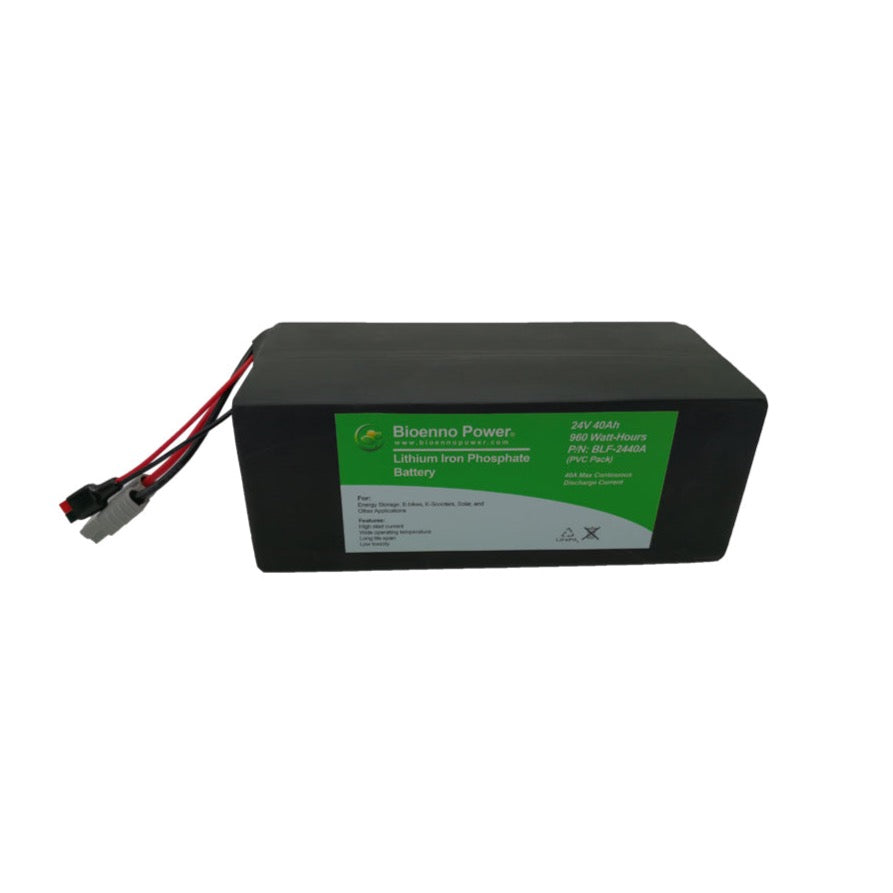

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2440A is a compact, high-performance 24V 40Ah battery engineered for higher voltage systems. Designed to power electric motors, vehicles, robotics, and communication devices operating at 24V, this PVC-encased battery offers 960W of continuous output. With built-in PCM (Protection Circuit Module), it delivers safe, balanced, and silent performance with no EMI/RFI interference.
Key Features
1. High Voltage, High Output
-
Max Continuous Discharge: 40A
-
Peak Discharge Current: 80A (5 seconds)
-
Max Output Power: 960 Watts
-
Supports high-demand 24V loads in a portable footprint
2. PCM Safety System
-
Integrated protection against overcurrent, overvoltage, undervoltage, and short circuits
-
Automatic cell balancing and onboard charge management
3. Lightweight PVC Design
-
Case Type: PVC Pack
-
Dimensions: 12.4 in. × 4.8 in. × 5.8 in. (315 mm × 122 mm × 147 mm)
-
Weight: 20.9 lbs. (9.5 kg)
-

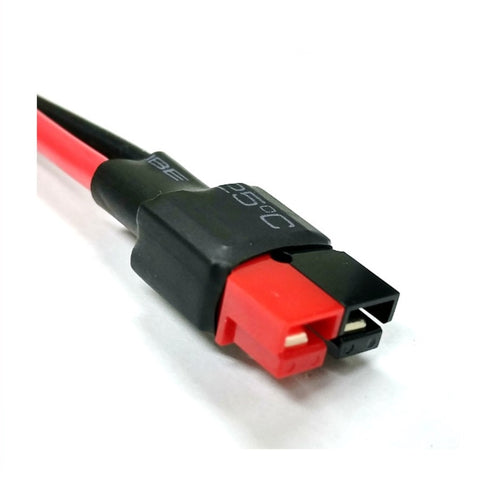

Charge Connector: Anderson Powerpole (PP45)
-

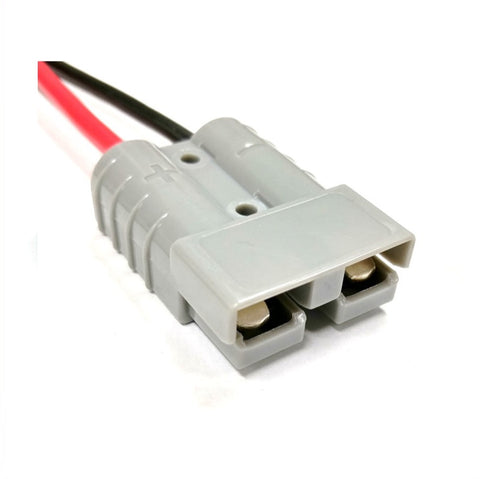

Discharge Connector: Anderson Powerpole (SB50)
4. Charger Compatibility
-
Compatible with Bioenno Power BPC-2404A AC-to-DC charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 4A
-
Connector: Anderson Powerpole (35A)
-
Battery Specifications – BLF-2440A
-
Voltage: 24V
-
Capacity: 40Ah
-
Max Output Power: 960 Watts
-
Built-in PCM for reliable protection and performance
-
Lightweight design for mobile and field deployments
Benefits
-
Excellent for compact high-power 24V systems
-
Long service life: 2000+ charge cycles
-
Maintenance-free lithium chemistry
-
Zero EMI/RFI for sensitive electronic environments
Ideal Applications
-
E-bikes and e-scooters
-
Robotics and automation
-
Military communication equipment
-
Field instrumentation and mobile solar kits
Installation Note
Always ensure Anderson connectors are properly secured before use to ensure optimal performance and safety.
This PVC version is not intended for use in a marine or wet environment application. Use the ABS Version for marine or wet environment applications.
