Product Overview

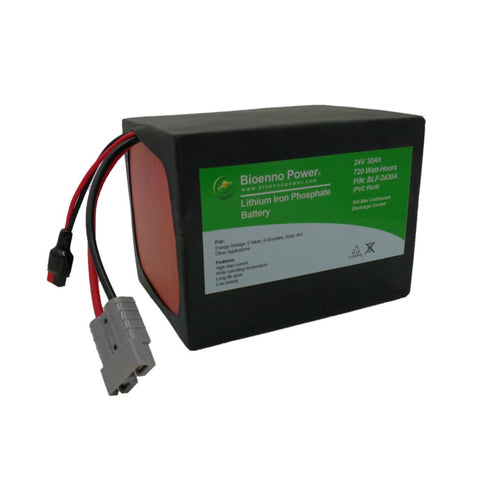

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2430A is a high-performance 24V 30Ah battery engineered for compact, high-voltage power applications. Built with a space-saving PVC pack and Anderson connectors, this battery is ideal for powering 24V motors, e-bikes, e-scooters, robotics, and military communication systems. The integrated PCM ensures safe, efficient operation and protects the battery from electrical faults.
Key Features
1. High-Voltage Output in a Compact Design
-
Max Continuous Discharge: 30A
-
Peak Discharge Current: 60A (5 seconds)
-
Max Continuous Power: 720 Watts
-
Delivers powerful energy output while maintaining a small footprint
2. PCM-Based Safety System
-
Offers protection from overcurrent, overvoltage, undervoltage, and short circuit
-
Integrated cell balancing and charging control circuitry
3. Portable and Durable
-
Case Type: PVC Pack
-
Dimensions: 7.7 in. × 5.6 in. × 5.8 in. (196 mm × 142 mm × 147 mm)
-
Weight: 15.8 lbs. (7.2 kg)
-
Anderson Powerpole connectors: PP45 for charging, SB50 for discharging
4. Charging Compatibility
-
Compatible with Bioenno Power BPC-2404A charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 4A
-
Connector: Anderson Powerpole (50A)
-
Battery Specifications – BLF-2430A
-
Voltage: 24V
-
Capacity: 30Ah
-
Charge Connector: Anderson Powerpole (PP45)
-
Discharge Connector: Anderson Powerpole (SB50)
-
Max Output Power: 720 Watts
-
Built-in PCM for full protection and balanced operation
Benefits
-
Powers high-voltage systems with compact battery size
-
Silent operation—ideal for EMI/RFI-sensitive equipment
-
Long cycle life with over 2000 deep discharges
-
Maintenance-free lithium chemistry with built-in safety features
Ideal Applications
-
Electric scooters and e-bikes
-
Robotics and field automation
-
Military radios and mobile command equipment
-
Off-grid and portable 24V solar systems
Installation Note
Ensure all Anderson connectors are properly secured before use. Tight connections ensure safe, consistent energy delivery.
This PVC version is not intended for use in a marine or wet environment application. Use the ABS Version for marine or wet environment applications.
