Product Overview

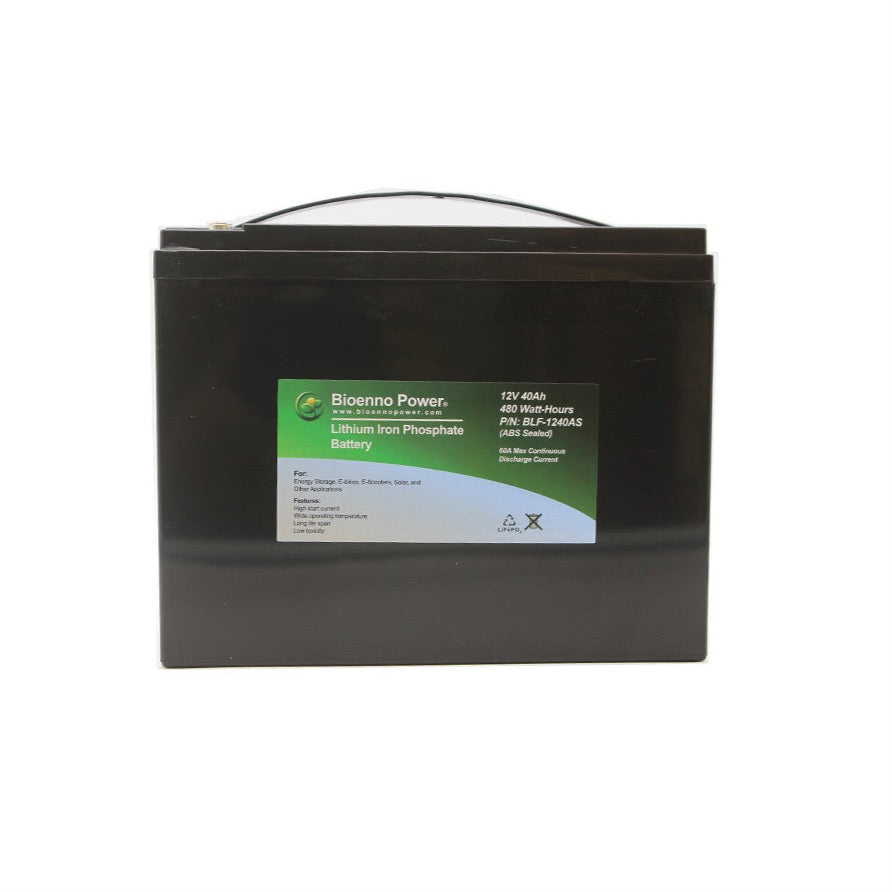

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1240AS is a next-generation 12V 40Ah battery built for high-power performance in mobile and stationary systems. As the ABS-sealed evolution of the WS and T models, this unit offers long-term reliability, high output, and clean, EMI-free power in a drop-in form factor.
Key Features of the 12V 40Ah Lithium Battery
1. High-Powered Output
-
Max Continuous Discharge: 40A
-
Peak Discharge Current: 80A (5 seconds)
-
Max Output Power: 480 Watts
2. Advanced Internal PCM Protection
-
Built-in Protection Circuit Module (PCM) for automatic internal balancing and multi-level safeguards: overcurrent, overvoltage, undervoltage, and short circuit.
-
Optimized for high-discharge and rapid-recovery performance cycles.
3. ABS Case and Noise-Free Design
-
Fully enclosed ABS sealed housing with screw terminals for secure connection.
-
Produces no EMI or RFI, making it ideal for avionics, radio, and other RF-sensitive applications.
4. Charging Compatibility
-

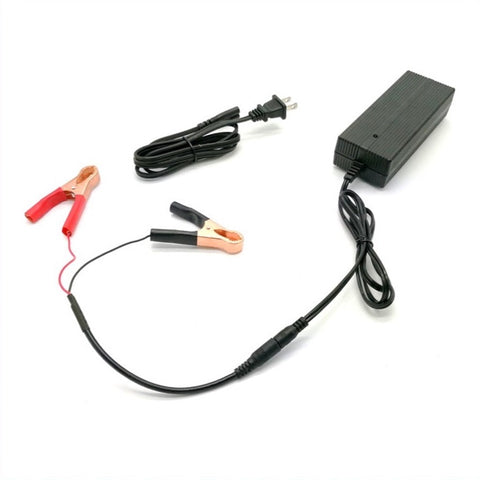

Compatible with Bioenno Power BPC-1506C AC-to-DC charger
-
Charger Specs:
-
Input: 120VAC / 220VAC
-
Output: 14.6VDC at 6A
-
Connector: Alligator Clips
-
Battery Specifications – BLF-1240AS
-
Voltage: 12V
-
Capacity: 40Ah
-
Case Type: ABS Sealed
-
Connector Type: Screw Terminal
-
Dimensions: 8.8 in. × 3.8 in. × 6.9 in. (223 mm × 95 mm × 175 mm)
-
Weight: 10.4 lbs. (4.7 kg)
Benefits
-
High-Capacity Power: Suited for heavy-load systems and long-runtime field equipment.
-
Reliable Performance: Designed for 2,000+ cycles under standard usage.
-
Drop-In Upgrade: Successor to previous WS and T models for seamless compatibility.
Ideal Applications
-
High-drain communication and telemetry equipment
-
E-bikes and electric mobility vehicles
-
Portable AV and solar energy systems
-
Marine, aerospace, and mobile labs
Installation Note
Before discharging, ensure screw terminals are wrench-tightened to maintain proper contact and avoid performance issues.
