Product Overview

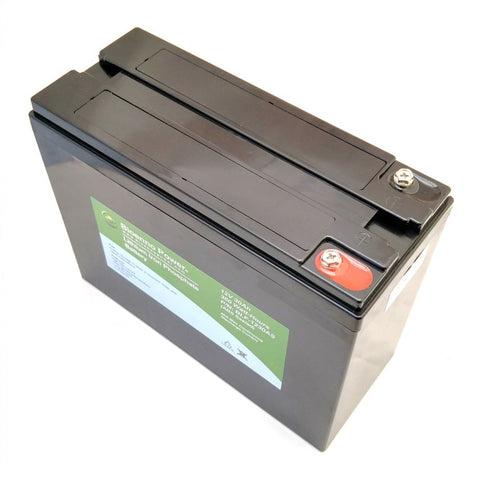

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1230AS is a 12V 30Ah high-discharge battery designed for both stationary and mobile power applications. Engineered with a rugged ABS case and integrated safety features, this battery delivers clean, EMI-free power for e-mobility systems, AV equipment, and high-consumption communication devices.
Key Features of the 12V 30Ah Lithium Battery
1. High Discharge for Demanding Applications
-
Max Continuous Discharge Current: 30A
-
Peak Discharge Current: 60A (5 seconds)
-
Max Continuous Power Output: 360 Watts
2. Built-In Protection Circuitry (PCM)
-
Balances internal cells and protects against overcurrent, undervoltage, overvoltage, and short circuits.
-
Integrated charging control ensures consistent, safe performance during use and while charging.
3. ABS Enclosure for Durability
-
Sealed ABS case offers excellent impact resistance for rugged environments.
-
No EMI/RFI ensures compatibility with sensitive electronics like radios and avionics.
4. Charging Compatibility
-
Compatible with Bioenno Power BPC-1506C charger
-
Charger Specs:
-
Input: 120VAC / 220VAC
-
Output: 14.6VDC at 6A
-
Connector: Alligator Clips
-
Battery Specifications – BLF-1230AS
-
Voltage: 12V
-
Capacity: 30Ah
-
Case Type: ABS Sealed
-
Discharge Connector: Screw Terminal
-
Dimensions: 8.8 in. × 3.8 in. × 6.9 in. (223 mm × 95 mm × 175 mm)
-
Weight: 8.6 lbs. (3.9 kg)
Benefits
-
High Output, Compact Size: Supports 360W loads while weighing under 9 lbs.
-
Quiet Operation: No electromagnetic interference; safe for radios and RF gear.
-
Cycle Longevity: Offers thousands of cycles under proper discharge conditions.
Ideal Applications
-
E-bikes, scooters, and light electric vehicles
-
Ham radios and high-power communication systems
-
Portable audio-visual setups
-
Off-grid solar and backup energy systems
Installation Note
Before discharging, always ensure terminal screws are securely wrench-tightened to maintain proper contact and performance.
