12V, 300Ah LFP Battery (ABS, BLF-12300AS)

12V, 300Ah LFP Battery (ABS, BLF-12300AS)

$2,699.99

Price: $2,699.99 (Battery Only), $2,839.99 (Battery+Charger)

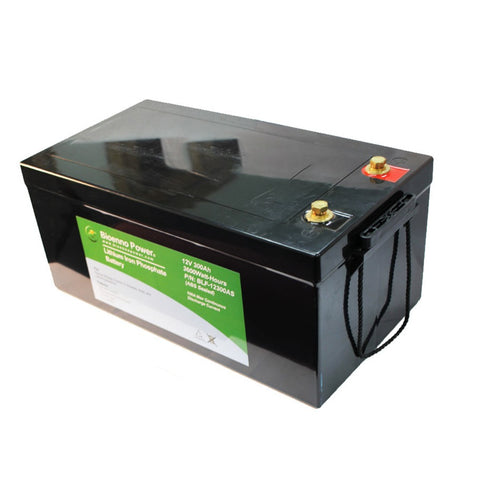

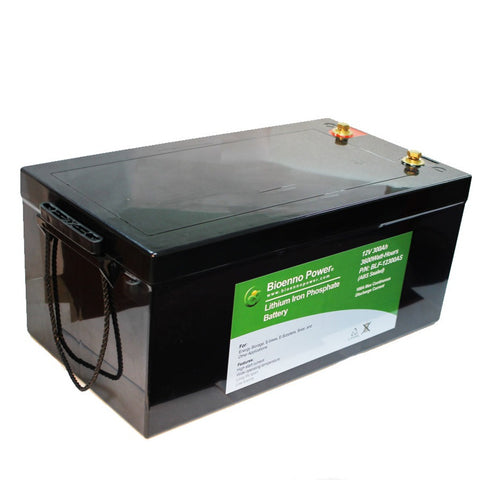

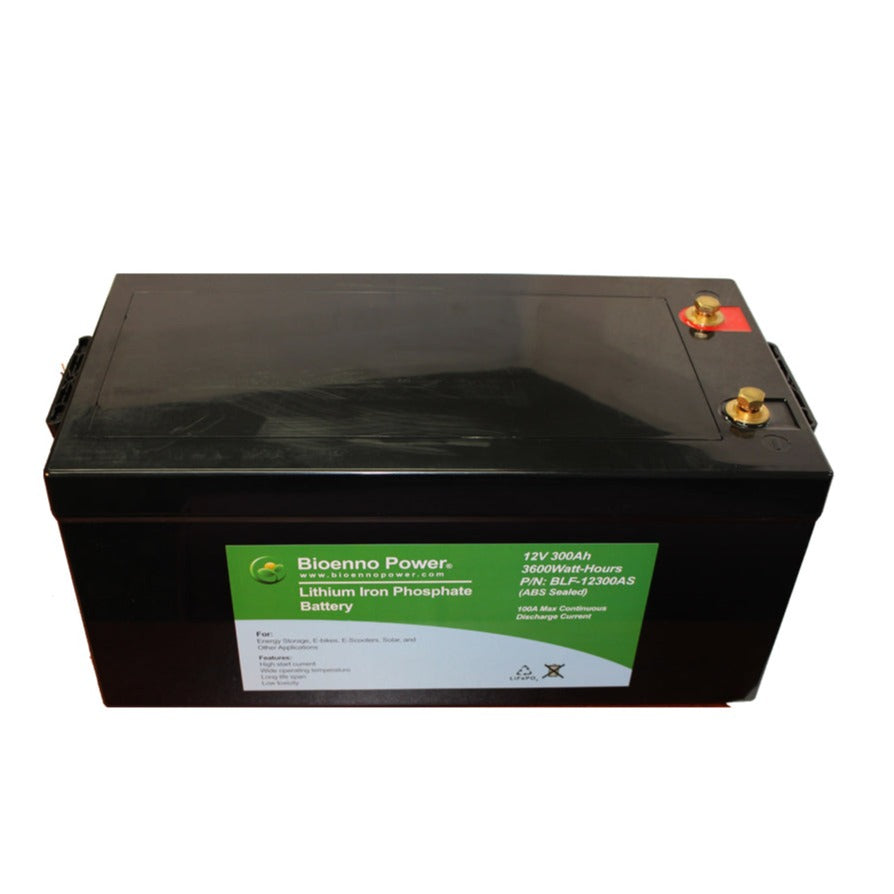

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-12300AS is a state of the art 12V 300Ah battery. Electrically identical to our popular BLF-12300AS, this ABS Sealed variant is the drop in solution for your system and application and offers the proven world-class performance of a Bioenno Power battery in a form factor you are familiar with. Ideal for hard use, this ABS version has seen extensive use powering critical avionics on sail planes with additional applications covering e-bike, e-scooter, radio communications and audio-visual. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 20A with Alligator Clips. Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.

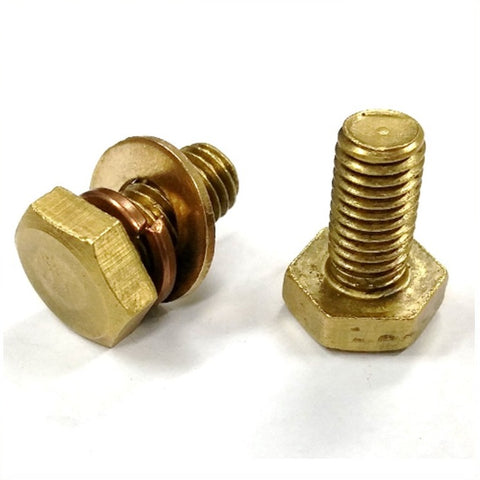

Before discharge confirm terminal screws are wrench tightened to ensure proper contact is made!



BLF-12300AS User Manual [PDF]

BLF-12300AS Battery Specifications
Voltage: 12V
Capacity: 300 Ah
Case Type: ABS Sealed
Maximum Continuous Discharge Current: 100A
Maximum Peak Pulse Current:  200A (5 sec.)
Max Power Delivered to Load at 12V: 1,200 Watts
Charge Connector:  Screw Terminal
Discharge Connector:  Screw Terminal
Dimensions: 20.7 in. x 10.4 in. x 8.6 in. (525 mm x 263 mm x 217 mm)
Weight:  78 lbs.   (35.4 kg)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220VAC Charger
Please note you can also use an adapter to convert the output from the battery to various outputs including a DC plug.

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 14.6VDC
Current: 20A
Connector:  Alligator Clips
Model Number: BPC-1520C

Policy
Shipping: Standard, Bulk Restricted (3)
Returns/Exchange: 30 Days
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
