Description
User Manual – BLF-12300AS | Material Safety Data Sheet – LiFePO4 | UN383_BLF-12300AS
Extension Cord Warning:
If you are using a 100 ft. extension cord with the AC to DC Bioenno Power metal box charger supplied with the battery or bought the AC to DC wall charger separately, or using Minn Kota PCL, or Noco Genius, or other LiFePO4 wall chargers, use AWG 10 extension cords only for 100 ft runs. All other common 100 ft. extension cords that are AWG 12, 14, 16 will not work with this charger and will not correctly charge the battery. These chargers pull too much current and require thick extension cords, if used. This is required, or connect directly to the AC outlet.
Product Overview

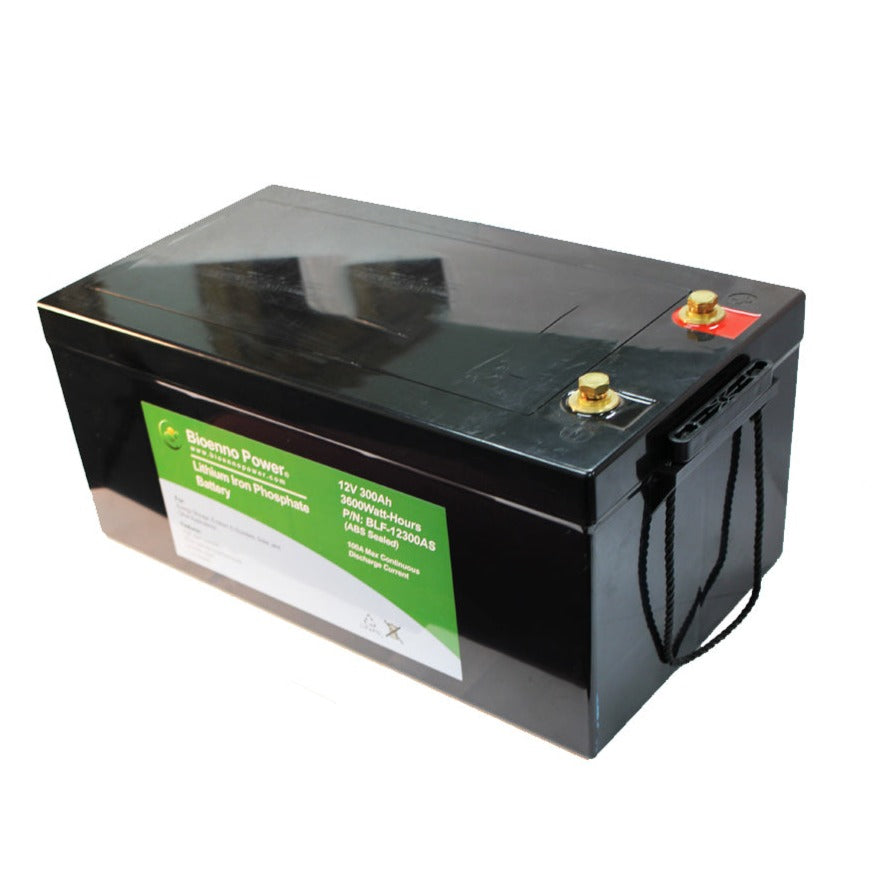

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-12300AS is a heavy-duty 12V 300Ah battery engineered for maximum capacity and sustained high output. With a rugged ABS-sealed case and integrated protection circuit module (PCM), this deep-cycle battery delivers reliable, maintenance-free performance for solar, AV, avionics, and field power applications—while operating silently with zero EMI/RFI interference.
Key Features of the 12V 300Ah Lithium Battery
1. Massive Power Capacity
-
Max Continuous Discharge: 100A
-
Peak Discharge Current: 200A (5 seconds)
-
Max Output Power: 1,200 Watts
-
Provides long runtimes with high output and discharge efficiency
2. Advanced PCM-Integrated Protection
-
Full protection from overcurrent, overvoltage, undervoltage, and short circuiting
-
Balances internal cells and includes integrated charging control
3. Rugged ABS Construction
-
Case Type: Sealed ABS
-

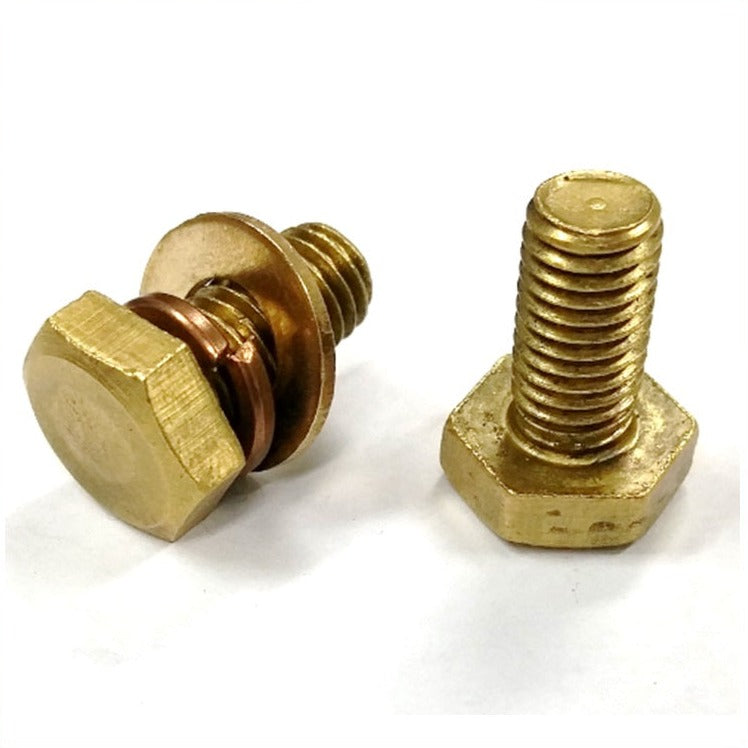

Connectors: Screw terminals for secure and high-current applications
-
Completely silent and EMI-free operation, ideal for radio and flight systems
4. Charging Compatibility
-

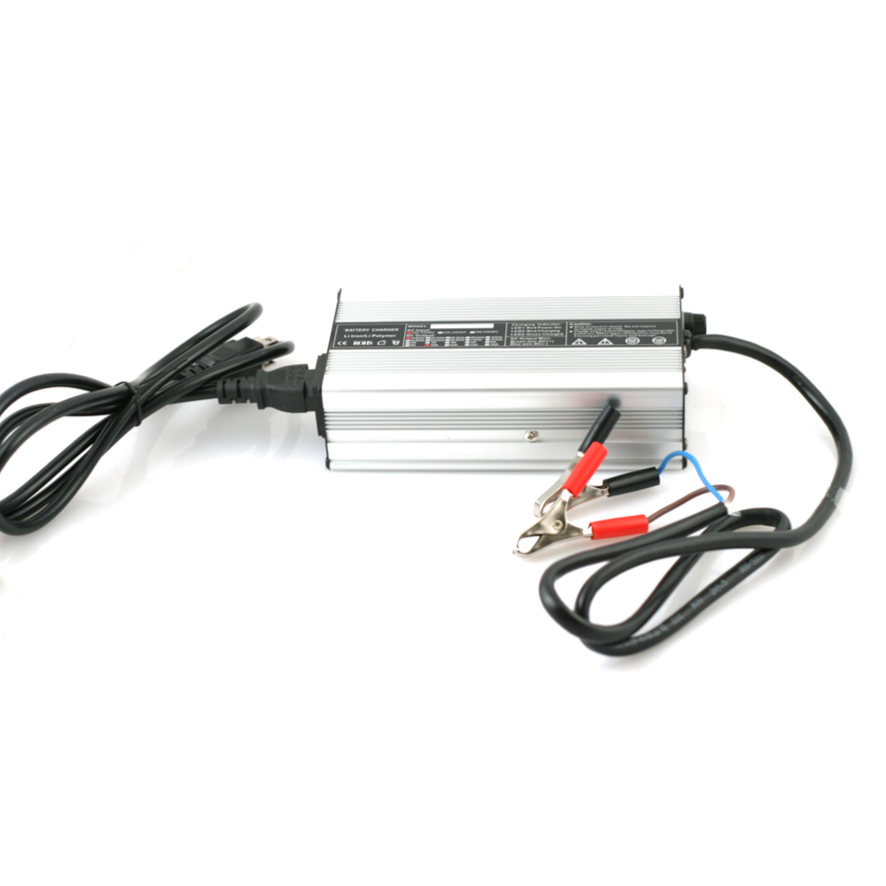

Compatible with Bioenno Power BPC-1520C AC-to-DC charger
-
Specs:
-
Input: 110VAC / 220VAC
-
Output: 14.6VDC at 20A
-
Connector: Alligator Clips
-
Battery Specifications – BLF-12300AS
-
Voltage: 12V
-
Capacity: 300Ah
-
Max Power Output: 1,200 Watts
-
Charge/Discharge Connector: Screw Terminal
-
Dimensions: 20.7 in. × 10.4 in. × 8.6 in. (525 mm × 263 mm × 217 mm)
-
Weight: 78 lbs. (35.4 kg)
Benefits
-
High Capacity, Extended Runtime: Perfect for energy storage and continuous draw
-
Robust Protection: Ensures safe use in mission-critical environments
-
Long-Lasting: Rated for 2000+ cycles and 5–10+ years of service
-
No Maintenance Required: Fully sealed, no memory effect, and easy installation
Ideal Applications
-
High-capacity solar and off-grid power systems
-
Portable labs and field communications
-
Marine and RV energy banks
-
Large AV and surveillance systems
-
Backup for high-power motors and mobile platforms
Installation Note
Before discharge, confirm that screw terminals are wrench-tightened for optimal conductivity and safety.
