Product Overview

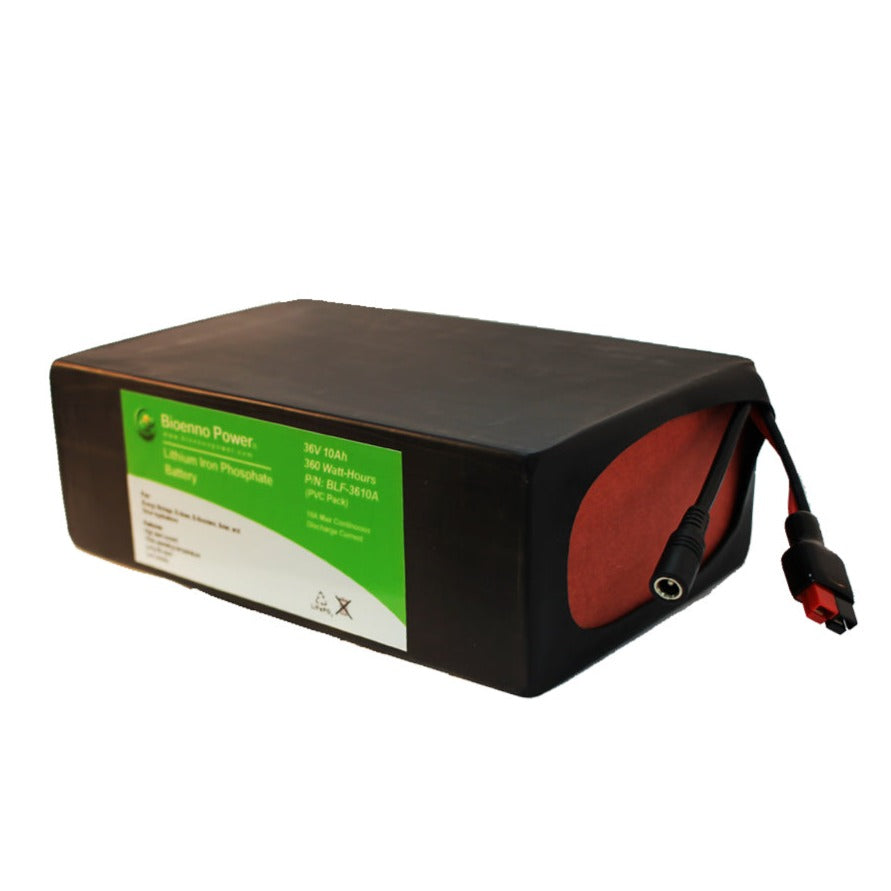

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3610A is a compact, high-performance 36V 10Ah battery engineered for higher-voltage systems requiring clean, stable energy. With 360W of output power and a space-saving PVC design, this battery is ideal for e-bikes, electric scooters, robotics, and other 36V platforms. Built-in PCM protection ensures safety, long life, and EMI/RFI-free operation.
Key Features
1. Reliable High-Voltage Output
-
Max Continuous Discharge: 10A
-
Peak Discharge Current: 20A (5 seconds)
-
Max Continuous Power: 360 Watts
-
Ideal for 36V motor-driven systems and mobility solutions
2. Integrated PCM Protection
-
Protects against overcurrent, overvoltage, undervoltage, and short circuits
-
Internal cell balancing and built-in charge control ensure optimal battery health
3. Lightweight, Compact Form Factor
-
Case Type: PVC Pack
-
Dimensions: 8.3 in. × 5.2 in. × 3.1 in. (211 mm × 131 mm × 78 mm)
-
Weight: 7.6 lbs. (3.5 kg)
-

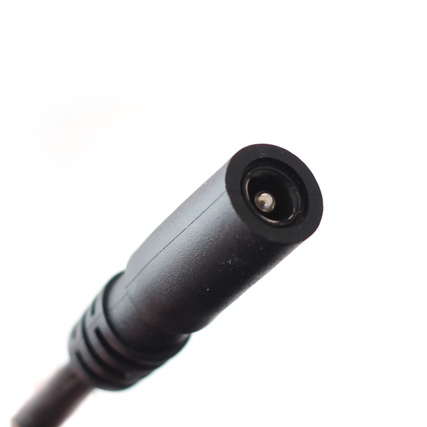

Charge Connector: DC Barrel Plug
-
Discharge Connector: Anderson Powerpole (PP45)

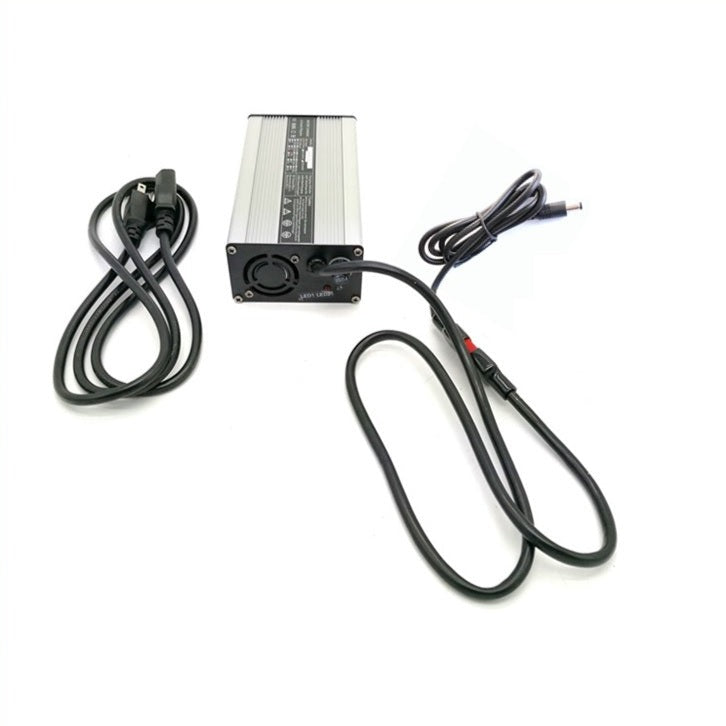

4. Compatible Charger Specifications
-
Model: BPC-3602DC
-
Input: 110VAC / 220VAC
-
Output: 43.8VDC at 2A
-
Connector: DC Plug
-
Battery Specifications – BLF-3610A
-
Voltage: 36V
-
Capacity: 10Ah
-
Output Power: 360 Watts
-
Built-in PCM with safety protections and charging management
-
Lightweight and compact for easy integration
Benefits
-
Perfect for high-efficiency 36V electronics
-
Maintenance-free lithium chemistry
-
Long-lasting with over 2000 charge cycles
-
No EMI or RFI — safe for sensitive systems
Ideal Applications
-
E-bikes and 36V electric scooters
-
Robotics and autonomous platforms
-
Light industrial tools and field devices
-
Mobile energy systems and power carts
Installation Note
Ensure connectors are secure and compatible before powering your system for optimal safety and performance.
