24V, 10Ah LFP Battery (PVC, BLF-2410A)

Please select below:: Battery+Charger(2A)
Sale price$229.99


Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.





Price: $189.99 (battery only), $229.99 (battery+charger)

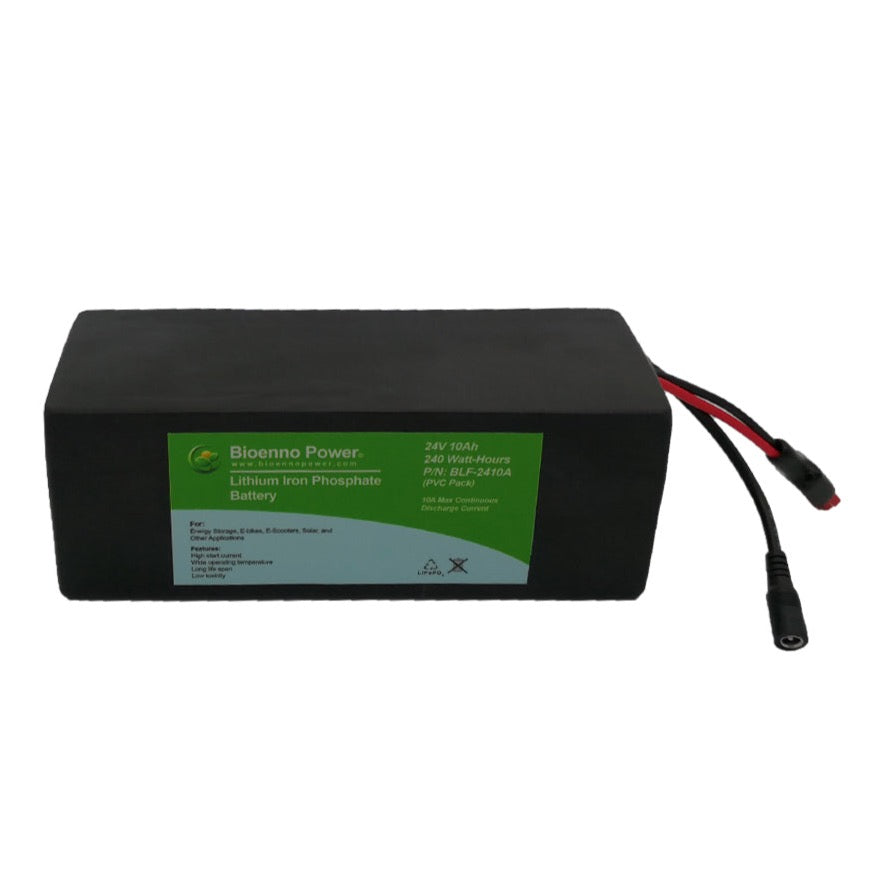

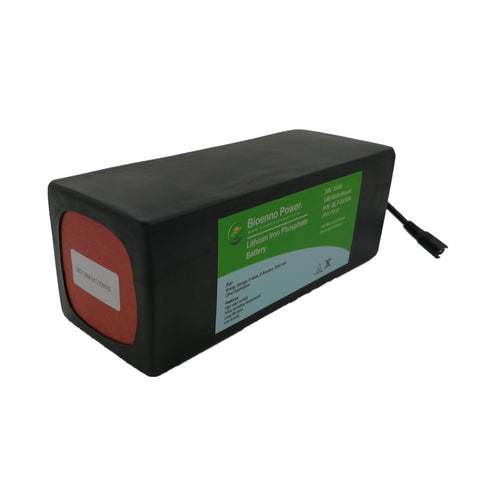

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2410A is a state of the art 24V 10Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics and military radios operating at 24V. This battery features a small and compact form factor designed for the smallest footprint. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 2A, with DC barrel plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-2410A User Manual [PDF]

BLF-2410A Battery Specifications
Voltage: 24V
Capacity: 10Ah
Case Type: PVC Pack

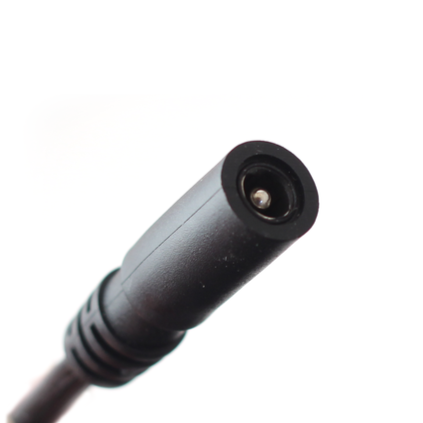

Charge Connector:  DC Barrel Plug

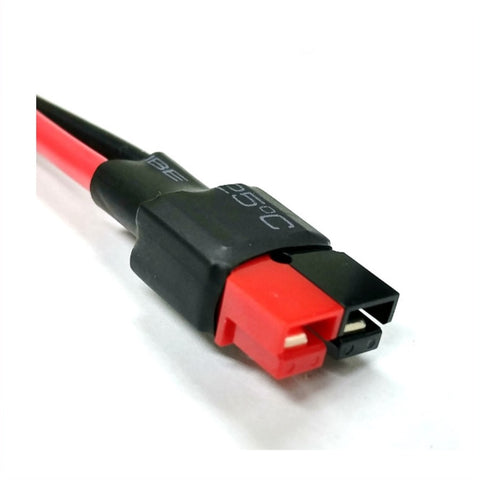

Discharge Connector:  Anderson Powerpole PP45
Maximum Continuous Discharge Current: 10A (Make sure your load consumes less than 10A)
Maximum Peak Discharge Current: 20A (5 sec.)
Maximum Continuous Power:  240 Watts (24V x 10A = 240 Watts) (Make sure your load consumes less than 240 Watts)
Dimensions:(L x W x H) 8.5 in. x 3.3 in. x 3.2 in. (214 mm x 83 mm x 82 mm)
Weight: 5.3 lbs.  (2.4 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

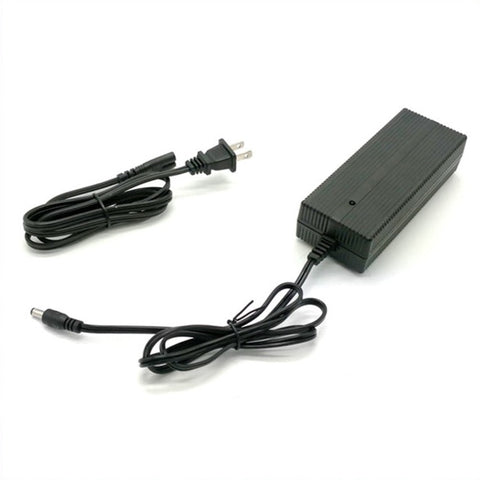

Compatible AC-to-DC Charger Specifications
Input Voltage: 110 VAC
Output Voltage: 29.2VDC
Current: 2A
Connector: DC Plug
Model Number: BPC-2402DC

Returns/Exchange: 30 Days
Warranty: See Separate Warranty Page
