User Manual – BLF-2410AS | Material Safety Data Sheet for LiFePO4
Product Overview

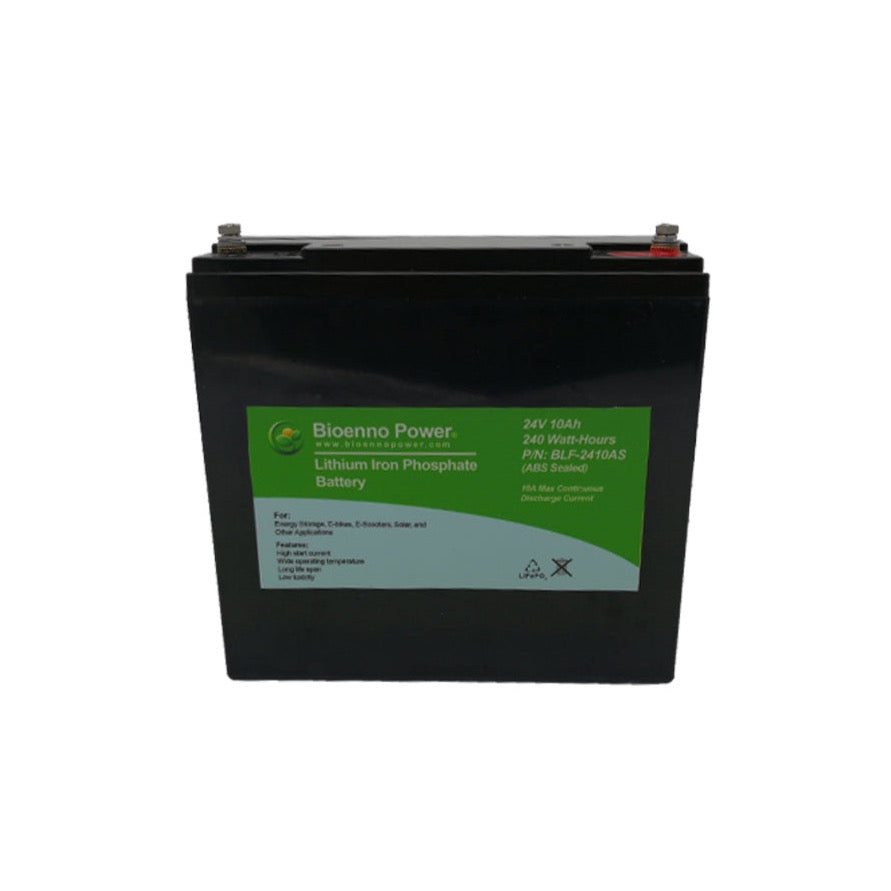

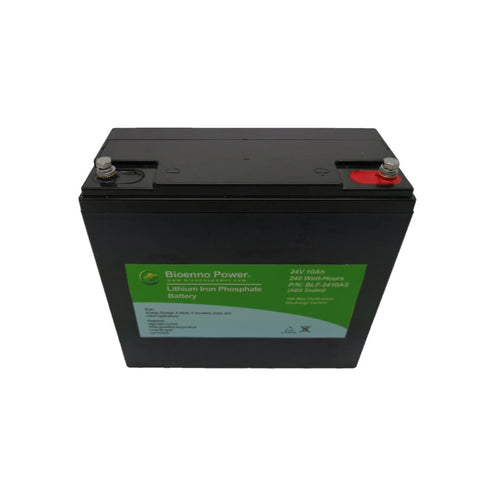

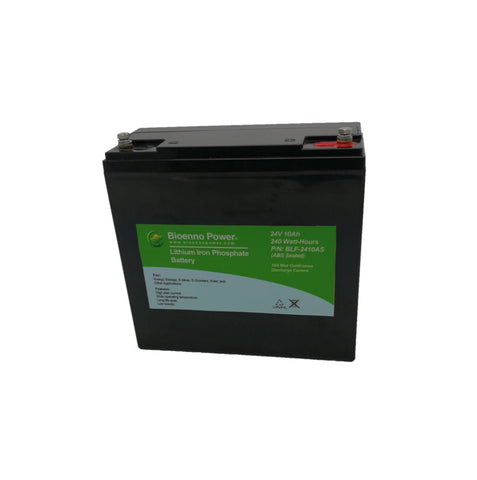

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2410AS is a 24V 10Ah high-voltage lithium battery housed in a sealed ABS case. This compact unit is designed to power motors, electric vehicles, robotic platforms, and scientific instruments that demand more than a 12V power supply. It features a built-in PCM (Protection Circuit Module) for safe, reliable operation and operates without any EMI or RFI interference, making it suitable for sensitive applications.
Key Features
1. High Voltage, High Compatibility
-
Max Continuous Discharge: 10A
-
Peak Discharge Current: 20A (5 seconds)
-
Max Continuous Power Output: 240 Watts
-
Provides clean, reliable energy for 24V system loads
2. Integrated PCM Safety
-
Built-in protection for overcurrent, overvoltage, undervoltage, and short circuit
-
Manages internal cell balancing and charge circuitry for long-term health
3. Compact and Durable Design
-
Case Type: ABS Sealed
-
Dimensions: 7.2 in. × 3.2 in. × 6.7 in. (182 mm × 77 mm × 171 mm)
-
Weight: 5.7 lbs. (2.6 kg)
-
Screw terminals for secure, high-conductivity connections
4. Charging Compatibility
-

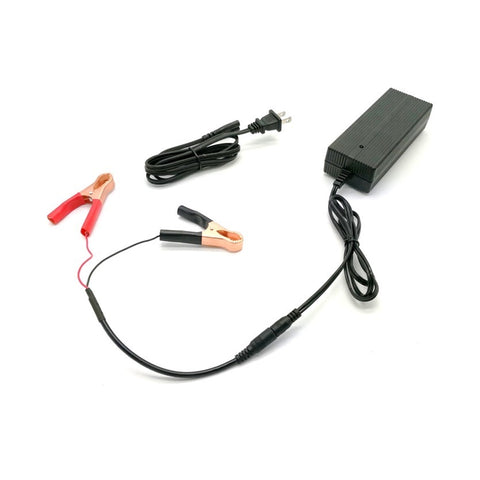

Compatible with Bioenno Power BPC-2402C charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 2A
-
Connector: Alligator Clips
-
Battery Specifications – BLF-2410AS
-
Voltage: 24V
-
Capacity: 10Ah
-
Charge Connector: Screw Terminal
-
Discharge Connector: Screw Terminal
-
Max Power Output: 240 Watts
-
Built-in PCM for protection and balanced charging
Benefits
-
Designed for higher-voltage applications like motors, robotics, and EVs
-
Extended cycle life with more than 2000 charge cycles
-
Safe and silent operation with zero EMI/RFI interference
-
Ideal for field deployments and compact 24V energy systems
Ideal Applications
-
E-bikes and electric scooters
-
Robotics and automation platforms
-
Portable lab equipment and sensors
-
Off-grid power tools and devices
Installation Note
Ensure all screw terminals are wrench-tightened before discharge for safe, reliable power delivery.
