Description
BLF-4820A User Manual | Material Safety Data Sheet for LiFePO4
Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-4820A is a high-performance 48V 20Ah battery designed for higher voltage applications. Ideal for electric vehicles like e-bikes and e-scooters, robotics, and industrial systems, this battery combines a compact footprint with advanced power delivery.
Key Features
1. High Power in a Compact Package
-
Continuous Discharge: 20A
-
Peak Discharge: 40A (5 sec)
-
Power Output: 960 Watts
-
Size: 10.3 in. × 5.7 in. × 5.7 in.
-
Weight: 20.9 lbs. (9.5 kg)
2. Integrated Protection and Efficiency
-
Built-in PCM ensures internal cell balancing
-
Full protection from overcurrent, over/under voltage, and short circuit
-
Integrated charge circuitry
-
No EMI/RFI – completely silent operation

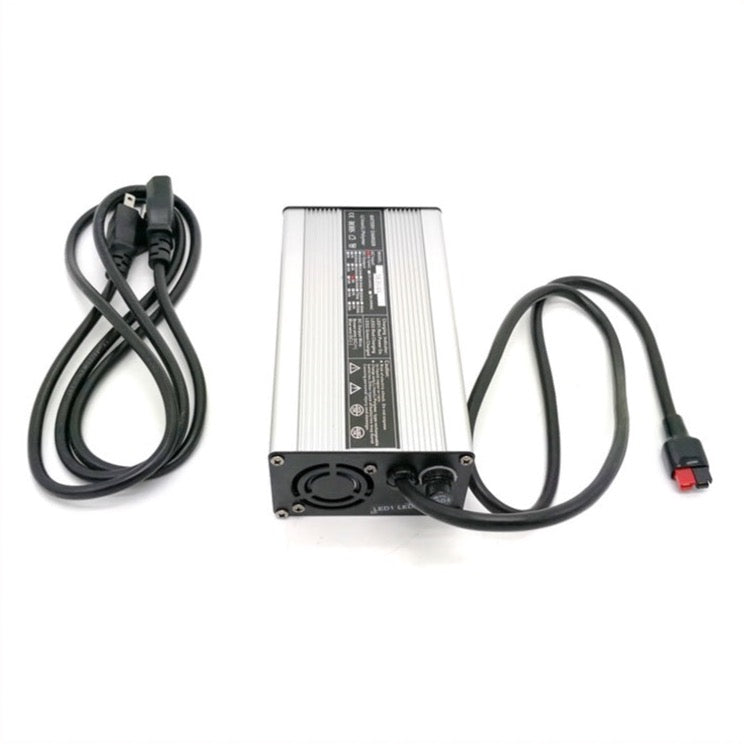

3. Charging Specifications
-
Compatible Charger Output: 58.4VDC at 4A
-
Connector: Anderson Powerpole PP45
-
Model: BPC-4804A
-
Input Voltage: 110VAC/220VAC
BLF-4820A Battery Specifications
-
Voltage: 48V
-
Capacity: 20Ah
-
Case Type: PVC
-
Charge Connector: Anderson Powerpole PP45
-
Discharge Connector: Anderson Powerpole SB50
-
Max Continuous Power: 960 Watts
Recommended Applications
-
E-bikes and e-scooters
-
Robotics and automation
-
Industrial 48V systems and motors
