User Manual – BLF-2450AS | Material Safety Data Sheet for LiFePO4

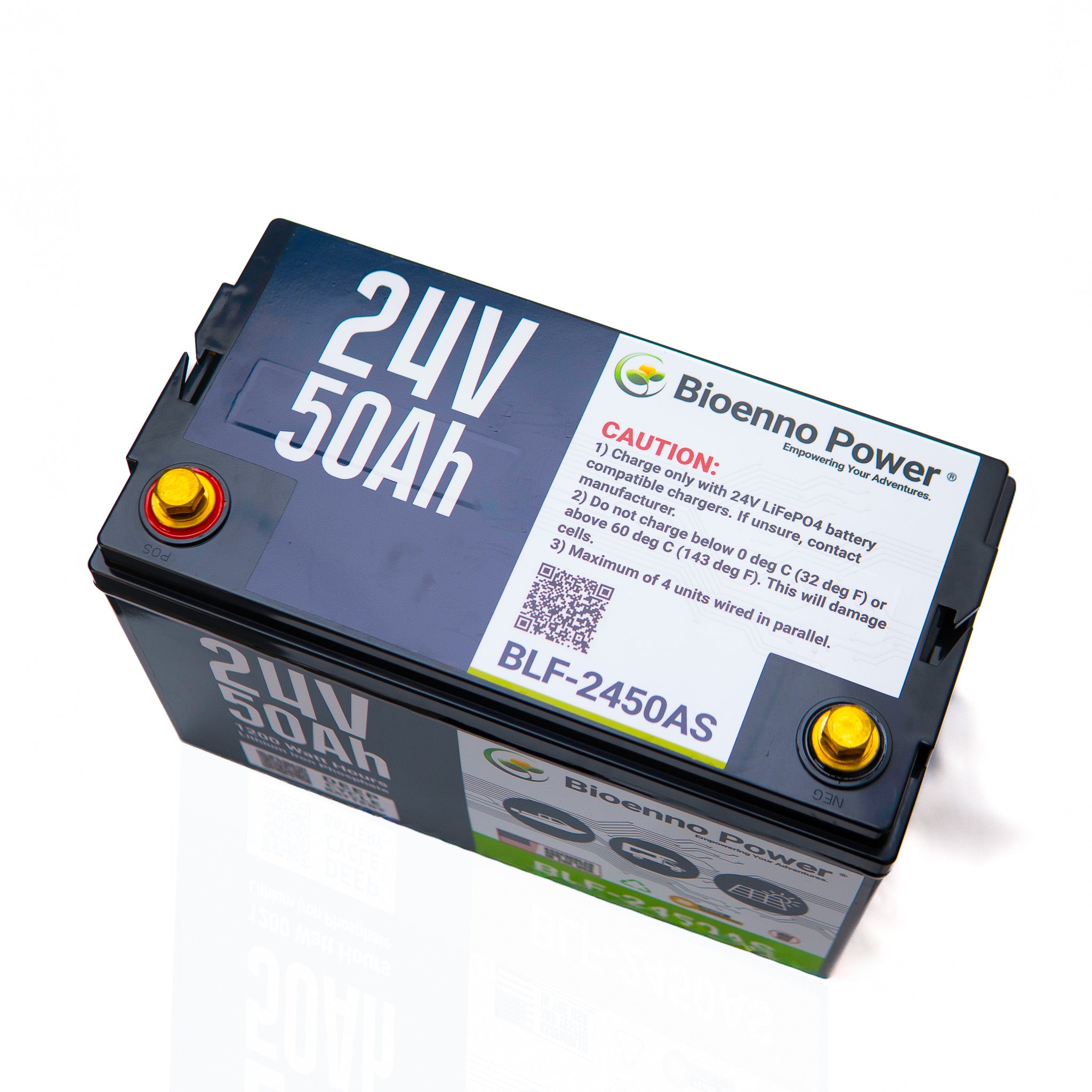

Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2450AS is a 24V 50Ah deep-cycle battery built into a rugged ABS-sealed case. With 3,000+ charge cycles and a 20-year service life, this battery is ideal for high-voltage applications like marine motors, electric vehicles, robotics, and scientific field equipment. Its integrated PCM ensures full protection, silent operation, and clean, EMI-free power delivery.
Key Features
1. Reliable High-Power Output
-
Max Continuous Discharge: 50A
-
Peak Discharge Current: 100A (5 seconds)
-
Max Power Output: 1200 Watts
-
Designed to deliver steady performance in demanding 24V systems
2. Built-In Protection and Charge Management
-
PCM protects against overcurrent, undervoltage, overvoltage, and short circuits
-
Internal cell balancing and integrated charging circuitry
-
Zero EMI/RFI noise — perfect for sensitive electronics
3. ABS Case Durability and Versatile Use
-
Case Type: ABS Sealed
-
Dimensions: 12.9 in. × 6.6 in. × 8.5 in. (330 mm × 168 mm × 216 mm)
-
Weight: 28.9 lbs. (13.1 kg)
-
Charge/Discharge Connector: Screw Terminal

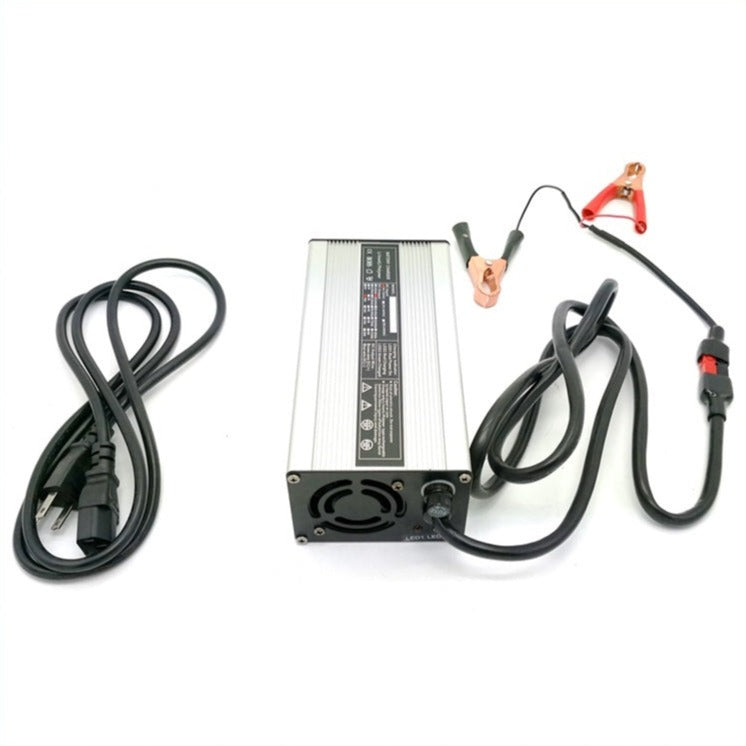

4. Charging Compatibility
-
Compatible with Bioenno Power BPC-2410A or BPC-2410C
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 10A
-
Connector: Alligator Clips or Anderson Powerpole with Ring Adapter
-
Battery Specifications – BLF-2450AS
-
Voltage: 24V
-
Capacity: 50Ah
-
Max Continuous Power: 1200 Watts
-
Screw terminals for secure installation
-
Integrated PCM for long-term protection and stability
Connection Guidelines
-
Do not connect this 24V battery in series with another 24V battery
-
Parallel connection allowed (up to 4 batteries) with serial numbers starting with “20” or higher
Benefits
-
Built to withstand rugged environments with long-term reliability
-
Ideal for high-draw 24V applications requiring consistent, protected output
-
Maintenance-free lithium chemistry with extended service life
-
Silent, interference-free operation
Ideal Applications
-
Marine motors and onboard electronics
-
E-bikes, e-scooters, and high-voltage vehicles
-
Robotics and automation systems
-
Field-deployed radios, sensors, and research gear

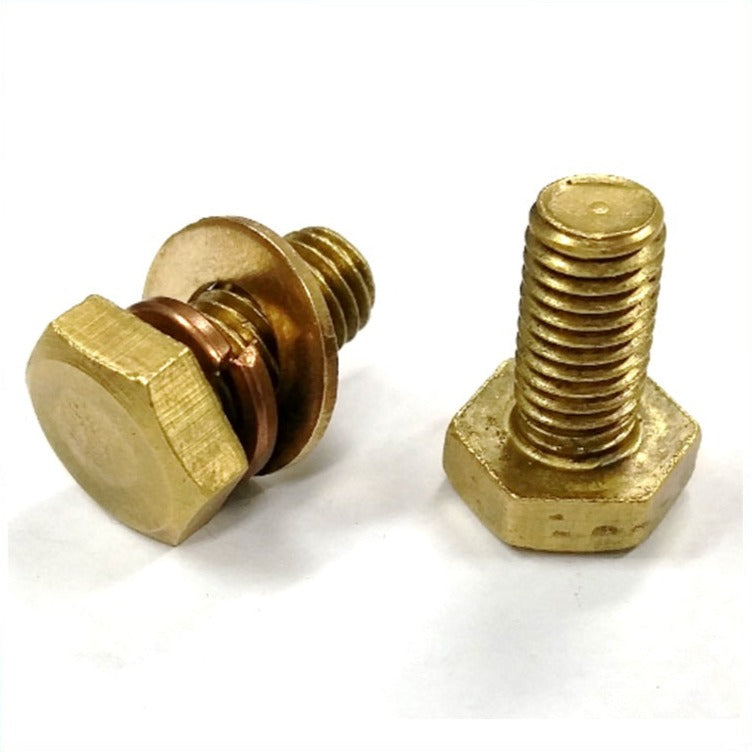

Installation Note
Always wrench-tighten screw terminals before connecting loads or chargers to ensure safe and stable operation.
