12V, 20Ah LFP Battery (PVC, BLF-1220A)

12V, 20Ah LFP Battery (PVC, BLF-1220A)

$192.99

Price: $192.99 (battery only); $212.99 (battery including charger)

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1220A is a state-of-the-art 12V 20Ah battery. The BLF-1220A is the entry level unit of Bioenno Power's high-power 12V battery line designed for more stationary applications and higher power consumption portable electronics requiring a higher capacity and greater power output battery while demanding a battery which can reliably provide excellent performance over an extended service life. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A, with a DC Plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-1220A User Manual [PDF]

Model BLF-1220A Battery Specifications
Voltage: 12V
Capacity: 20Ah

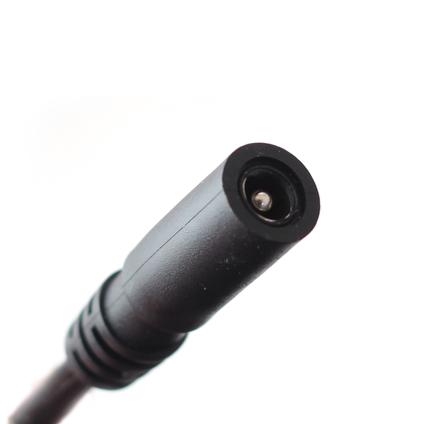

Charge Connector: DC Plug
Discharge Connector: Anderson Powerpole
Maximum Continuous Discharge Current: 40A (make sure your electrical load consumes less than 60A)
Maximum Power Delivered to Load @ 12V: 480 Watts (12V x 40A = 480 Watts)
Dimensions: 6.22 in. x 4.21 in. x 3.18 in. (158 mm x 107 mm x 81 mm) (updated dim.)
Weight: 5.2 lbs. (2.4 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC / 220 VAC Charger

AC-to-DC Charger Specifications
Input Voltage: 110VAC/120VAC
Output Voltage: 14.6VDC
Current: 4A
Connector: DC Plug

Additional Chargers

Policy
Shipping: Restricted, DGR-A
Returns/Exchange: 30 Days
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
