120 Watt Foldable Solar Panel for Charging Power Packs + Free Padded Case (BSP-120)

Please select below:: Solar Panel + Padded Case
Sale price$234.99


Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.

Available at Ham Radio Outlet.   See the link below:

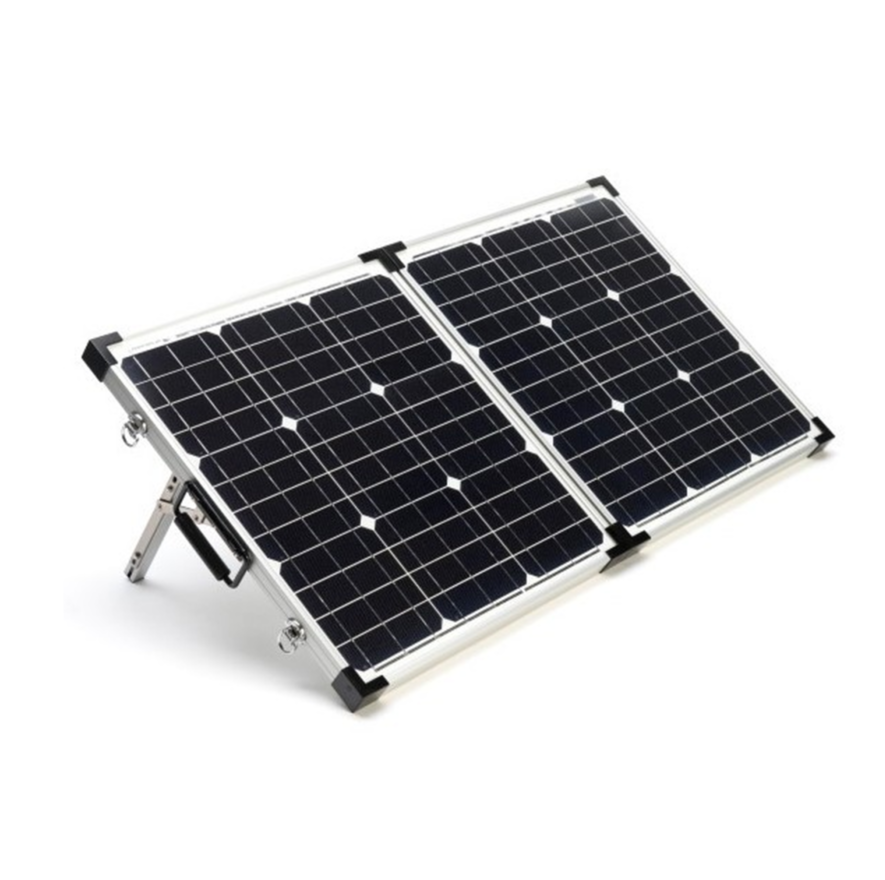

The Bioenno Power BSP-120 model 120 Watt Foldable Solar Panel is a high output monocrystalline solar panel system designed for ease of use. Featuring dual large sized panels with the highest overall output of our high-power line, this unit is ideal for field-day applications and other such applications where you are out in the field for extended periods of time with plenty of sunlight on hand but no access to the power grid. This unit when paired with the Bioenno Power Packs allows you to take most electronic devices ranging from laptops to radio equipment, communications gear and PA systems solar allowing you to fully exploit power from the sun. A Bioenno Power solar system offers clean and modulated output while being completely silent with no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference). And unlike traditional gasoline generators, sunlight is a bottomless fuel-source you don’t have to pay for. With a solar system, as long as you have sun you have electricity.  This solar panel includes the free padded case.

Please note: Our Solar Panels DO NOT include the Solar Charge Controller - it is sold separately. Always use a Solar Panel with a matching Solar Charge Controller when using with battery – attaching a panel directly to a battery is not advised.

BSP-120 Specifications

Maximum Power Output: 120W (60W per panel)
Maximum Voltage: 18V  (per panel)
Maximum Current: 3.35A  (per panel, so 6.7A in parallel)
Open Circuit Voltage: 22V (per panel)
Short Circuit Current: 3.66A  (per panel, so 7.32A in parallel)
Folded:(L x W x H) 30 in. x 22.1 in x 2.5 in (762 mm x 559 mm x 64 mm)
Unfolded: 44 in. x 30 in. x 1.25 in. (1118 mm x 762 mm x 32 mm)
Weight: 25.6 lbs. (11.5 kg.)
Temperature Range: -49°F ~ 185°F (-45°C ~ 85°C)

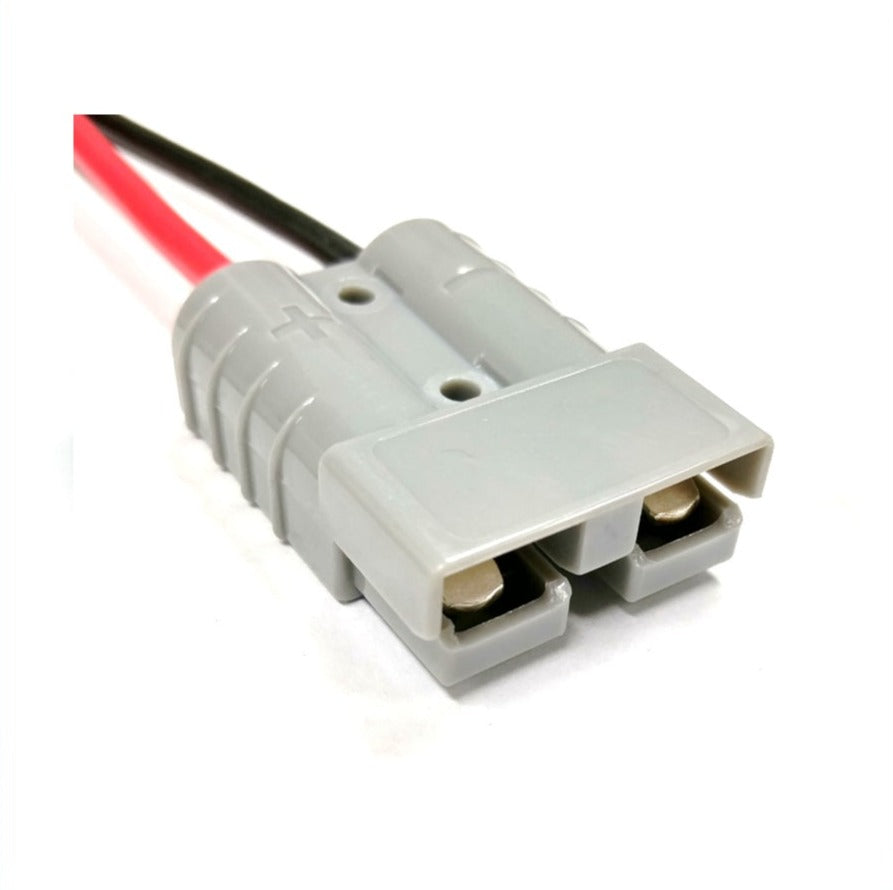

Connector: 50A Power Pole

Chaining Requirements*

Product can only be chained with matching Solar Panels of the same model with matching voltage and current
Series: Okay to chain, any number of panels acceptable
Parallel: Okay to chain, any number of panels acceptable

*Wiring and cabling for chaining available upon request


Shipping: Standard
Returns/Exchange: 30 Days
Warranty: See Separate Warranty Page
