36V, 50Ah LFP Battery (ABS, BLF-3650AS)


Please select below:: Battery Only
Price:
Sale price$1,299.99

Description

Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.





Price: $1299.99 (battery only), $1,359.99 (battery+charger)

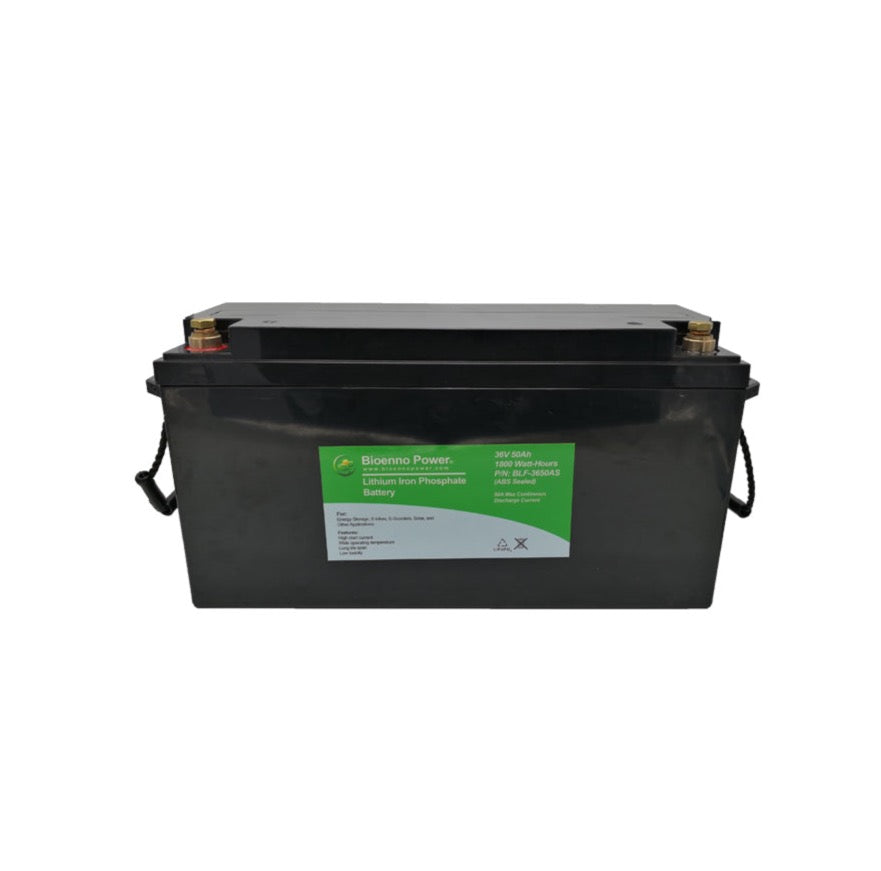

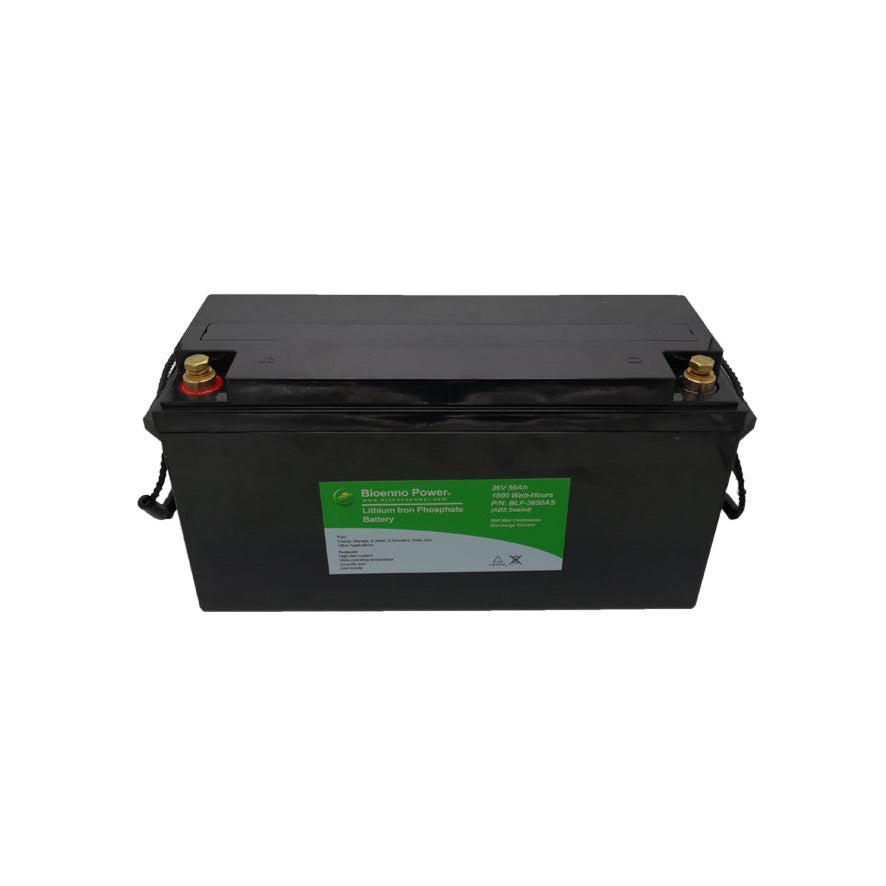

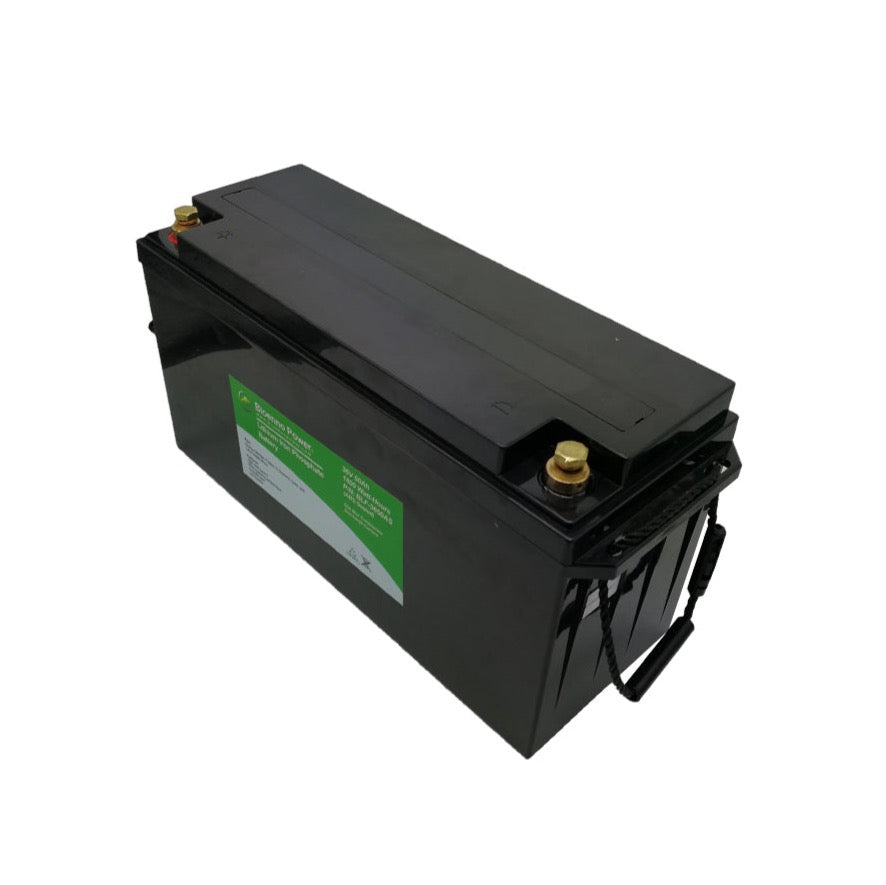

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3650AS is a state of the art 36V 50Ah battery in a standard ABS size case. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as larger motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics as well as in-field sensors and scientific equipment operating at higher voltages. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 10A, with Alligator Clips. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-3650AS User Manual [PDF]

BLF-3650AS Battery Specifications
Voltage: 36V
Capacity: 50Ah
Case Type: ABS Sealed
Charge Connector:  Screw Terminal
Discharge Connector:  Screw Terminal
Maximum Continuous Discharge Current: 50A (Make sure your load consumes less than 50A)
Maximum Peak Discharge Current: 100A (5 sec.)
Maximum Continuous Power:  1800 Watts (36V x 50A = 1800 Watts) (Make sure your load consumes less than 1800 Watts)
Dimensions:(L x W x H) 19.6 in. x 6.8 in. x 9.6 in. (496 mm x 172 mm x 242 mm)
Weight: 41.9 lbs.  (19 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

The 36V battery cannot be put into series with another 36V battery.
Parallel is okay up to 4 pcs of the same model with serial numbers starting with “20” or higher.

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 43.8VDC
Current: 8A
Connector:  Alligator Clips
Model Number: BPC-3608C
