24V, 10Ah LFP Battery (ABS, BLF-2410AS)


Please select below:: Battery+Charger(2A)
Price:
Sale price$229.99

Description

Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.









Price: $189.99 (battery only), $229.99 (battery+charger)

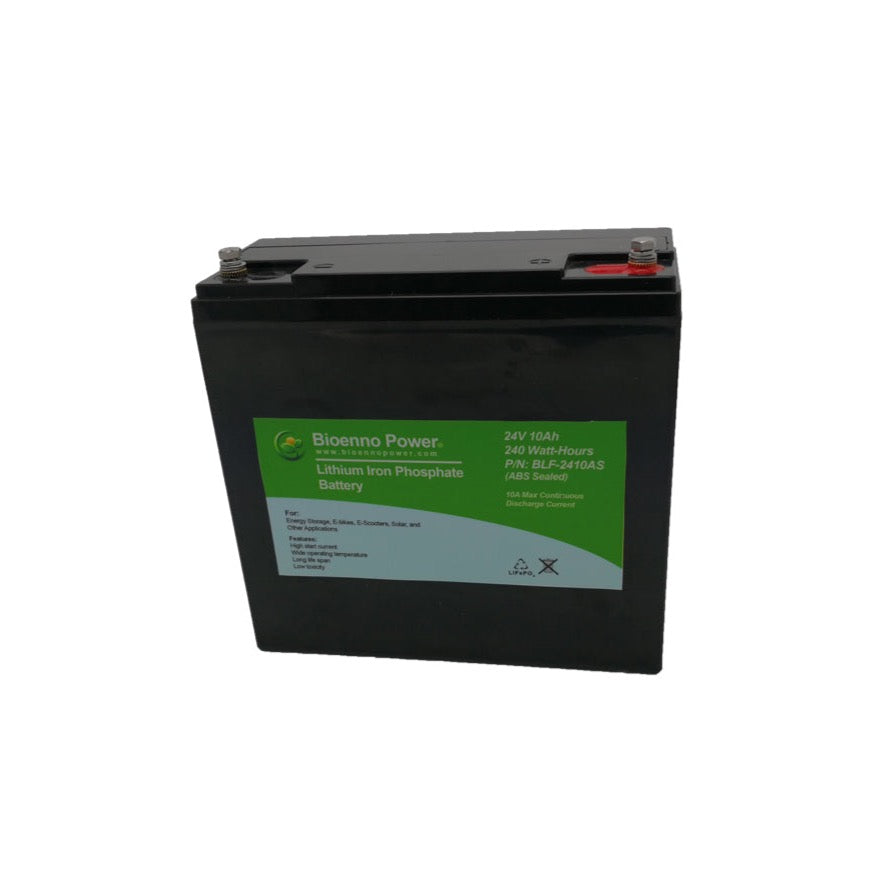

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2410AS is a state of the art 24V 10Ah battery in a standard ABS size case. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as larger motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics as well as in-field sensors and scientific equipment operating at higher voltages. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 2A, with Alligator Clips.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-2410AS User Manual [PDF]

BLF-2410AS Battery Specifications
Voltage: 24V
Capacity: 10Ah
Case Type: ABS Sealed
Charge Connector:  Screw Terminal
Discharge Connector:  Screw Terminal
Maximum Continuous Discharge Current: 10A (Make sure your load consumes less than 10A)
Maximum Peak Discharge Current: 20A (5 sec.)
Maximum Continuous Power:  240 Watts (24V x 10A = 240 Watts) (Make sure your load consumes less than 240 Watts)
Dimensions:(L x W x H) 7.2 in. x 3.2 in. x 6.7 in. (182 mm x 77 mm x 171 mm)
Weight: 5.7 lbs. (2.6 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

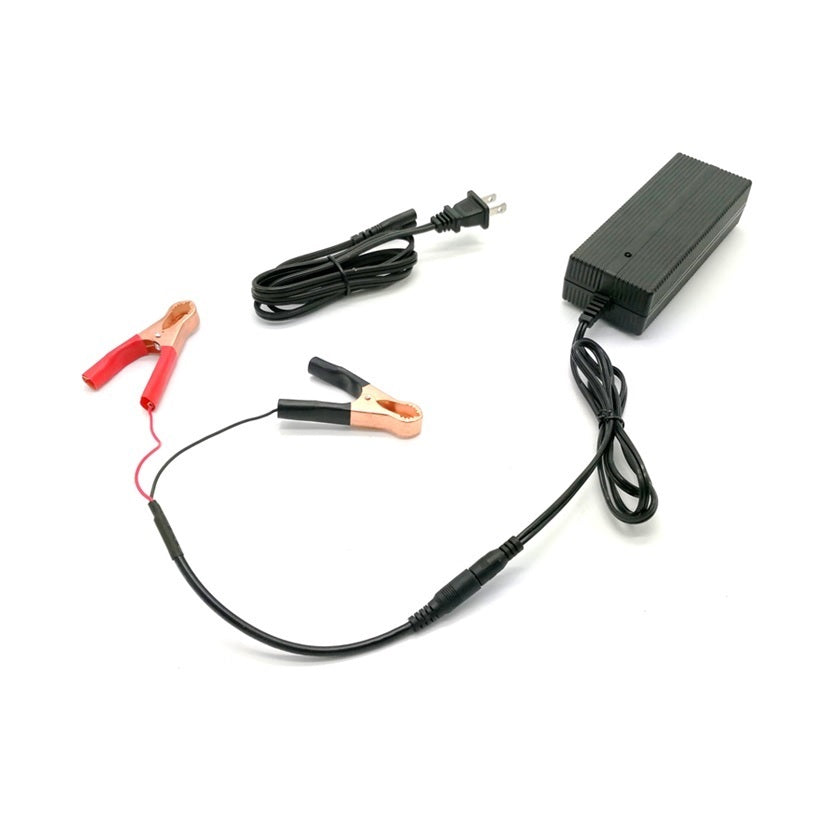

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 29.2VDC
Current: 2A
Connector:  Alligator Clips
Model Number: BPC-2402C

Policy

  • Shipping: Standard
  • Return/Exchange: 30 Days
  • Warranty: See Separate Warranty Page
