12V, 12Ah LFP Battery (PVC, BLF-1212AB)

12V, 12Ah LFP Battery (PVC, BLF-1212AB)

$124.99

Price:   $124.99 (battery only), $139.99 (including charger)

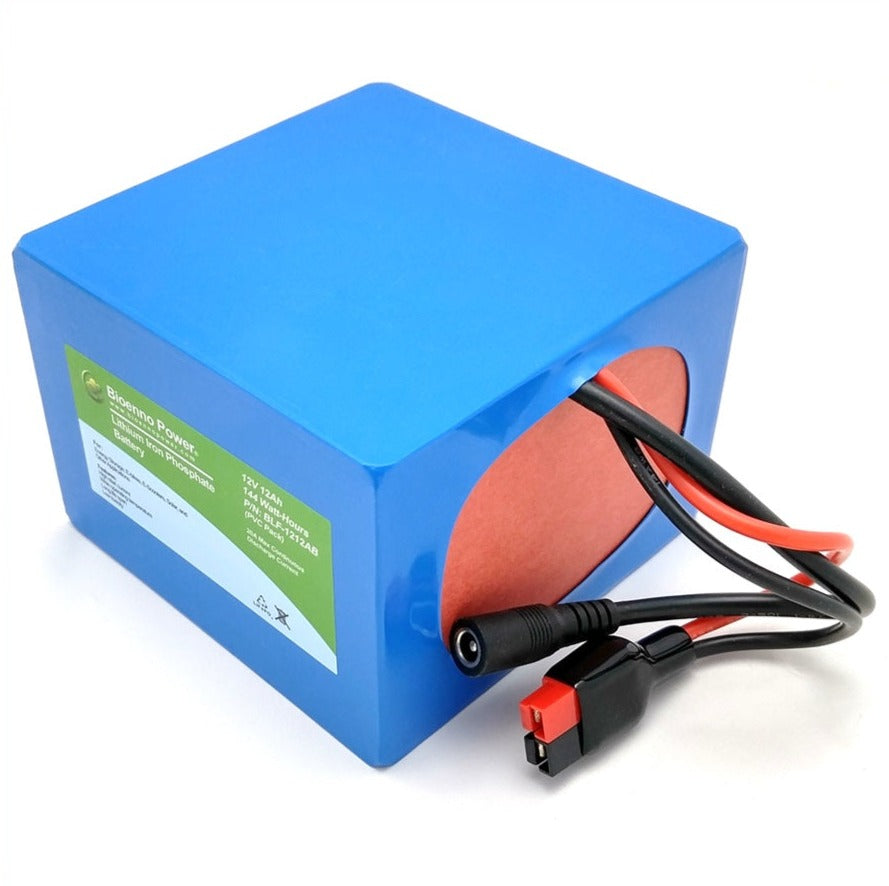

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1212AB is a state-of-the-art 12V 12Ah battery. Ideal for hard use, this PVC version has seen extensive use powering critical avionics on sail planes with additional applications covering e-bike, e-scooter, radio communications and audio-visual. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has an available 110VAC/220 VAC AC-to-DC charger, that provides 2A with DC Barrel Plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.

BLF-1212AB User Manual [PDF]

BLF-1212AB Battery Specifications
Voltage: 12V
Capacity: 12 Ah
Case Type: PVC Pack
Discharge Connector: Anderson Power Pole

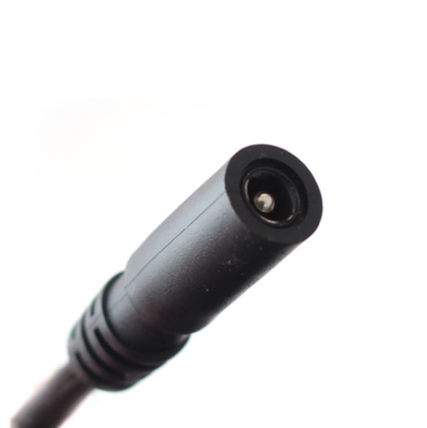

Charge Connector: DC Barrel Plug
Maximum Continuous Discharge Current: 20A
Maximum Peak Discharge Current: 40A (2 sec.)
Max Power Delivered to Load at 12V:  240 Watts (12V x 20A = 240Watts)
Dimensions:(L x W x H) 4.4 in. x 4.3 in. x 3 in. (108 mm x 108 mm x 75 mm)
Weight: 3.3 lbs. (1.5 kg)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 120VAC/220 VAC Charger
Please note you can also use an adapter to convert the output connector from the battery to various outputs including a DC plug.

Compatible AC-to-DC Charger Specifications
Input Voltage: 120VAC/220 VAC
Output Voltage: 14.6VDC
Current: 2A
Connector:  DC Barrel Plug
Model Number: BPC-1502DC

Policy

  • Shipping: Standard
  • Return/Exchange: 30 Days
  • Warranty: 2 Years

Notes

General:  I noticed the Max and Peak Continuous Discharge on the label may be different from the website and why?

The printed label may be rated to 1C Max Continuous or 2C peak.  However, for some models of batteries including the BLF-1212A, BLF-1212AB, BLF-1212AS, BLF-1215A, BLF-1215AS, and BLF-1220A, 30 Amp and 40 Amp PCM/BMS boards have been installed.  The de-rating on the label to 1C is mentioned to ensure the battery can deliver more than 2,000 to 3,000 cycles.  However, rest assured these batteries can deliver the 23 Amps for your ham radio equipment which has a duty cycle of 20% transmit and 80% receive.  If you operate continuous at the 2C discharge (with no duty cycle), the cycle life is a bit less to about 1,800 to 2,000 cycles instead of 2,000 to 3,000 cycles.
