24V, 20Ah LFP Battery (ABS, BLF-2420AS)

Please select below:: Battery Only
Sale price$359.99


Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.

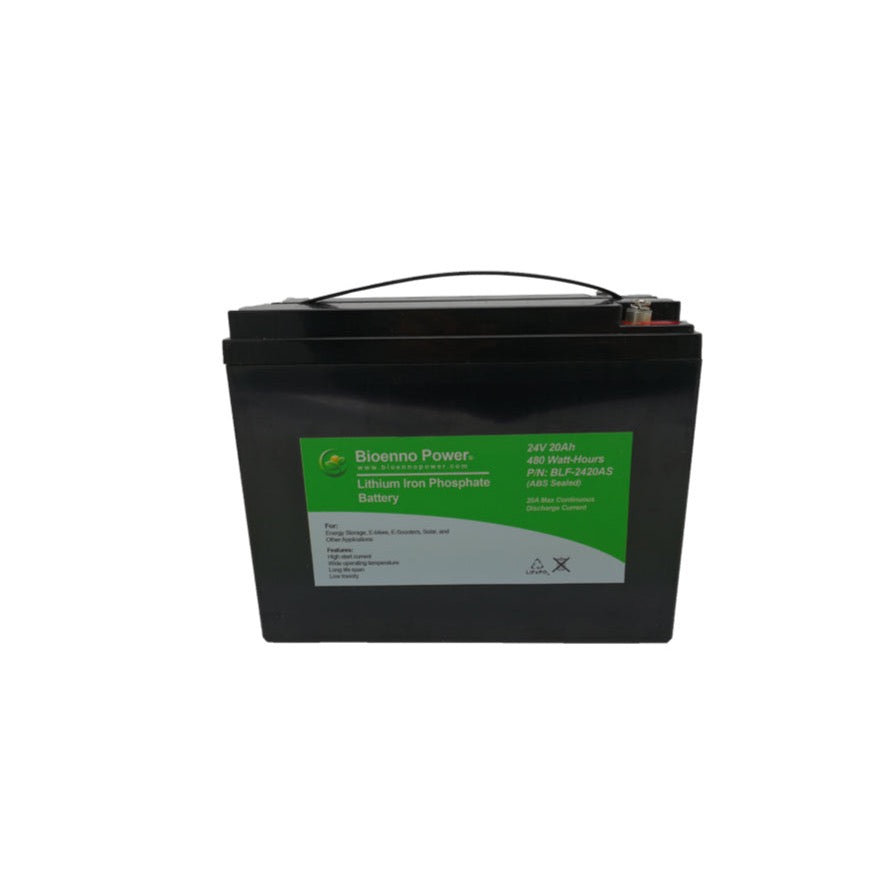

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2420AS is a state of the art 24V 20Ah battery in a standard ABS size case.  This is a 24V battery Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as larger motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics as well as in-field sensors and scientific equipment operating at higher voltages. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A, with Alligator Clips.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-2420AS User Manual [PDF]

BLF-2420AS Battery Specifications

Voltage: 24V
Capacity: 20Ah
Case Type: ABS Sealed
Charge Connector:  Screw Terminal
Discharge Connector:  Screw Terminal
Maximum Continuous Discharge Current: 20A (Make sure your load consumes less than 20A)
Maximum Peak Discharge Current: 40A (5 sec.)
Maximum Continuous Power:  480 Watts (24V x 20A = 480 Watts) (Make sure your load consumes less than 480 Watts)
Dimensions:(L x W x H) 8.8 in. x 4.7 in. x 6.9 in. (224 mm x 120 mm x 176 mm)
Weight: 11.6 lbs. (5.3 kg.)

Charging port is standard 1/4" bolt.
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

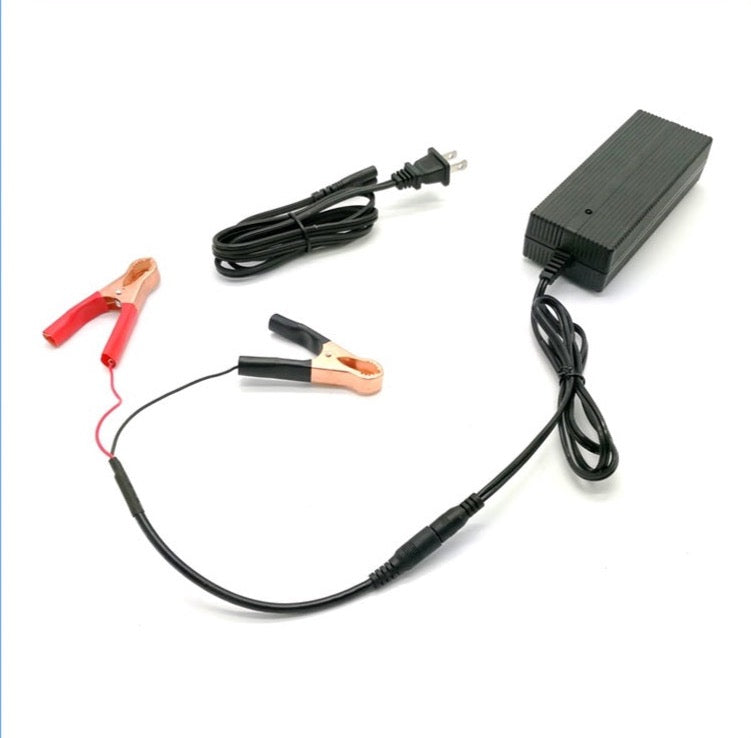

Compatible AC-to-DC Charger Specifications

Input Voltage: 110 VAC
Output Voltage: 29.2VDC
Current: 4A
Connector:  Alligator Clips
Model Number: BPC-2404C


Shipping: Standard
Return/Exchange: 30 Days
Warranty: See Separate Warranty Page
