36V, 20Ah LFP Battery (PVC, BLF-3620A)

36V, 20Ah LFP Battery (PVC, BLF-3620A)

$569.99

Price: $569.99 (battery only), $609.99 (battery+charger)

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-3620A is a state of the art 36V 20Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, and various robotics operating at 36V. This battery features a small and compact form factor designed for the smallest footprint. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A, with DC barrel plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-3620A User Manual [PDF]

BLF-3620A Battery Specifications
Voltage: 36V
Capacity: 20Ah
Case Type: PVC

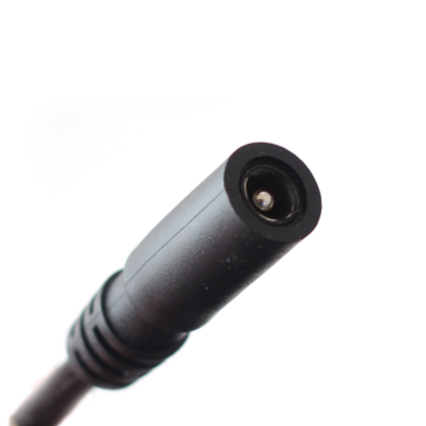

Charge Connector:  DC Barrel Plug
Discharge Connector:  Anderson Powerpole PP45
Maximum Continuous Discharge Current: 20A (Make sure your load consumes less than 20A)
Maximum Peak Discharge Current: 40A (5 sec.)
Maximum Continuous Power:  720 Watts (36V x 20A = 720 Watts) (Make sure your load consumes less than 720 Watts)
Dimensions: 9.5 in. x 5.1 in. x 5.8 in. (241 mm x 130 mm x 147 mm)
Weight: 15.8 lbs.  (7.2 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 110 VAC
Output Voltage: 43.8VDC
Current: 4A
Connector:  DC Plug
Model Number:  BPC-3604DC

Policy
Shipping: DGR
Returns/Exchange: None
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
