24V, 50Ah LFP Battery (PVC, BLF-2450A)

24V, 50Ah LFP Battery (PVC, BLF-2450A)

$862.49

Price: $862.49 (battery only), $952.49 (battery+charger)

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2450A is a state of the art 24V 50Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics and military radios operating at 24V. This battery features a small and compact form factor designed for the smallest footprint. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 10A, with DC barrel plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-2450A User Manual [PDF]

BLF-2450A Battery Specifications
Voltage: 24V
Capacity: 50Ah
Case Type: PVC
Charge Connector:  Anderson Powerpole PP45
Discharge Connector:  Anderson Powerpole SB50
Maximum Continuous Discharge Current: 50A (Make sure your load consumes less than 50A)
Maximum Peak Discharge Current: 100A (5 sec.)
Maximum Continuous Power:  1200 Watts (24V x 50A = 1200 Watts) (Make sure your load consumes less than 1200 Watts)
Dimensions: 10.5 in. x 6.3 in. x 6.8 in. (266 mm x 160 mm x 172 mm)
Weight: 26.2 lbs. (11.9 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry

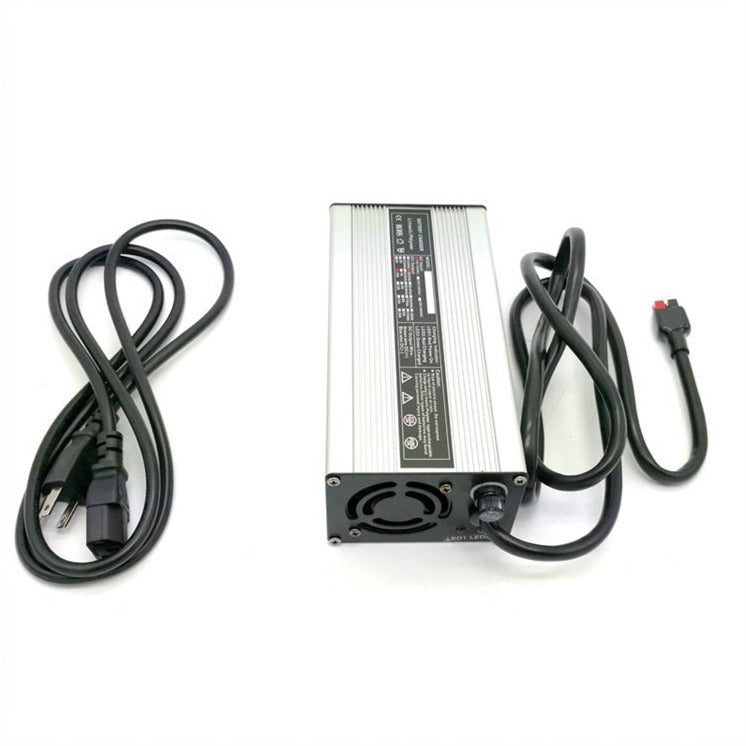

Available 110VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 110 VAC
Output Voltage: 29.2VDC
Current: 10A
Connector: Anderson Powerpole
Model Number: BPC-2410A

Policy
Shipping: DGR
Returns/Exchange: None
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
