12V, 9Ah LFP Battery (PVC, BLF-1209A)

12V, 9Ah LFP Battery (PVC, BLF-1209A)

$99.99

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1209A is a state of the art 12V 9Ah battery. Featuring the smallest form factor Bioenno Power has to offer, this unit is ideal for portable electronics applications where your device has low power consumption and requires a battery which like your device is small, light weight and extremely compact. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 2A with a DC Plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.


BLF-1209A User Manual [PDF]


BLF-1209A Battery Specifications
Voltage: 12V
Capacity: 9 Ah
PVC Soft Pack

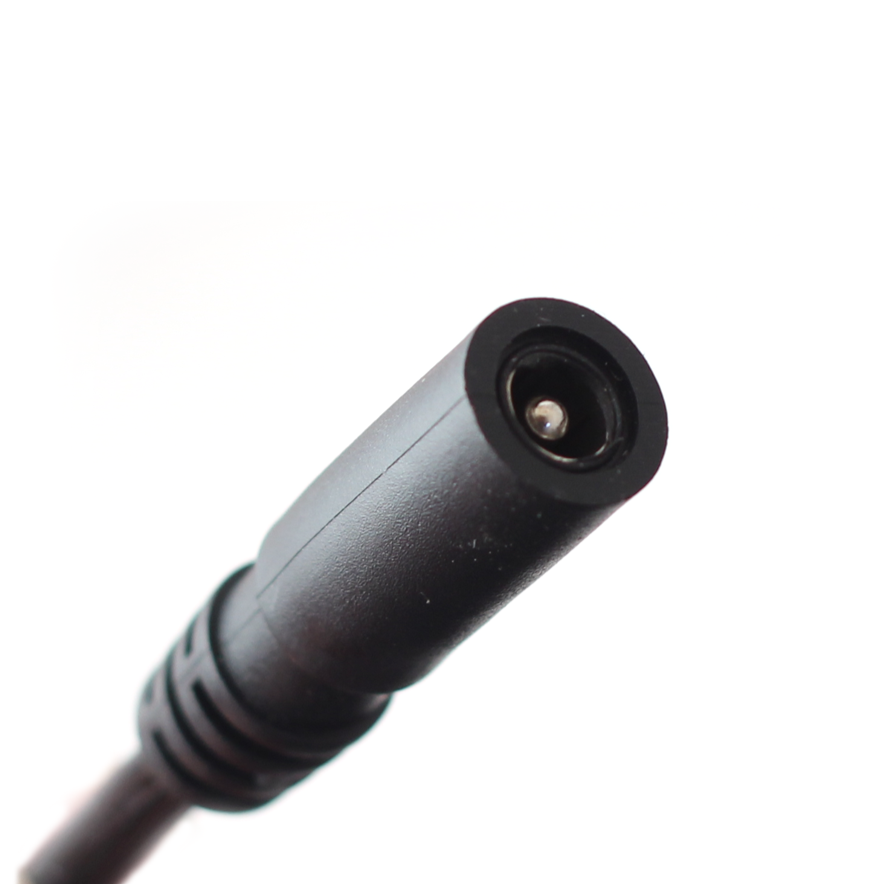

Charge Connector: DC Plug
Discharge Connector: Anderson Powerpole
Maximum Continuous Discharge Current: 20A (Make sure your load consumes less than 20A)
Maximum Peak Pulse Current: 40A (for 2 sec.)
Max Power Delivered to Load at 12V: 240 Watts (12v x 20A = 240 Watts) (Make sure your load consumes less than 240 Watts Continuous)
Dimensions: 4.26 in. x 3.19 in. x 3.03 in. (107 mm x 81 mm x 77 mm)
Weight: 2.6 lbs. (1.2 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Please note you can also use an adapter to convert the output connector from the battery to various outputs including a DC plug.

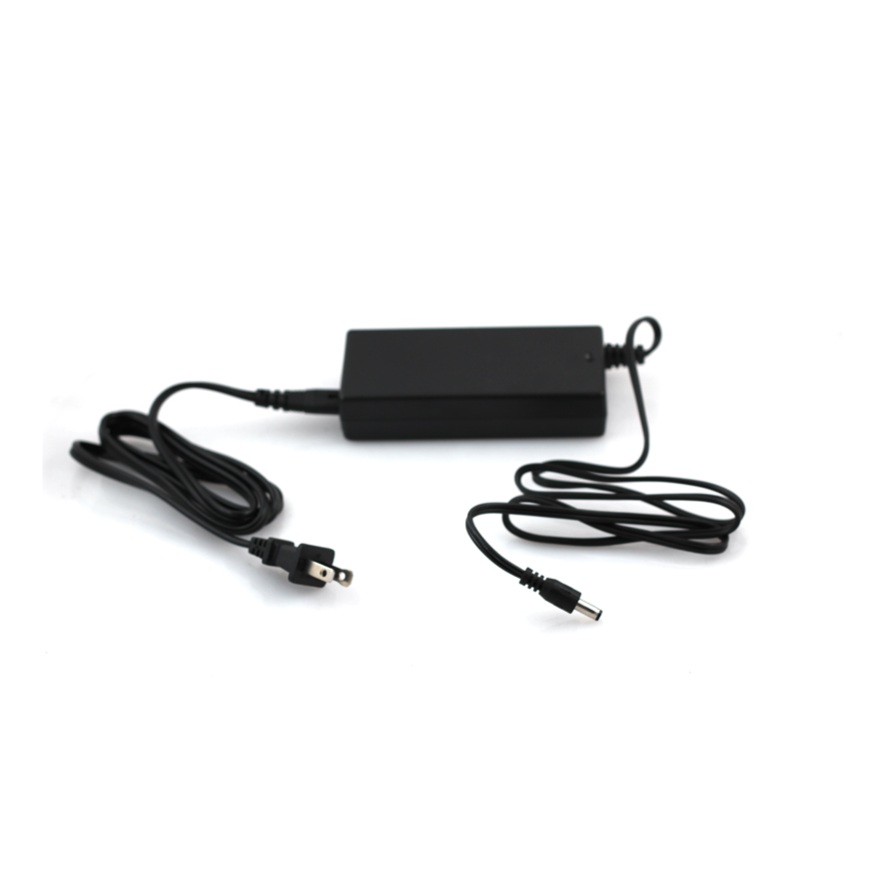

AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 14.6VDC
Current: 2A
Connector: DC Plug

Compatible Charger Model Number: BPC-1502DC


Policy
Shipping: Standard, Bulk Restricted (3)
Returns/Exchange: 30 Days
Warranty: 2 Years Standard Lithium Iron Phosphate Battery Warranty
