Description
Material Safety Data Sheet for LiFePO4
Product Overview

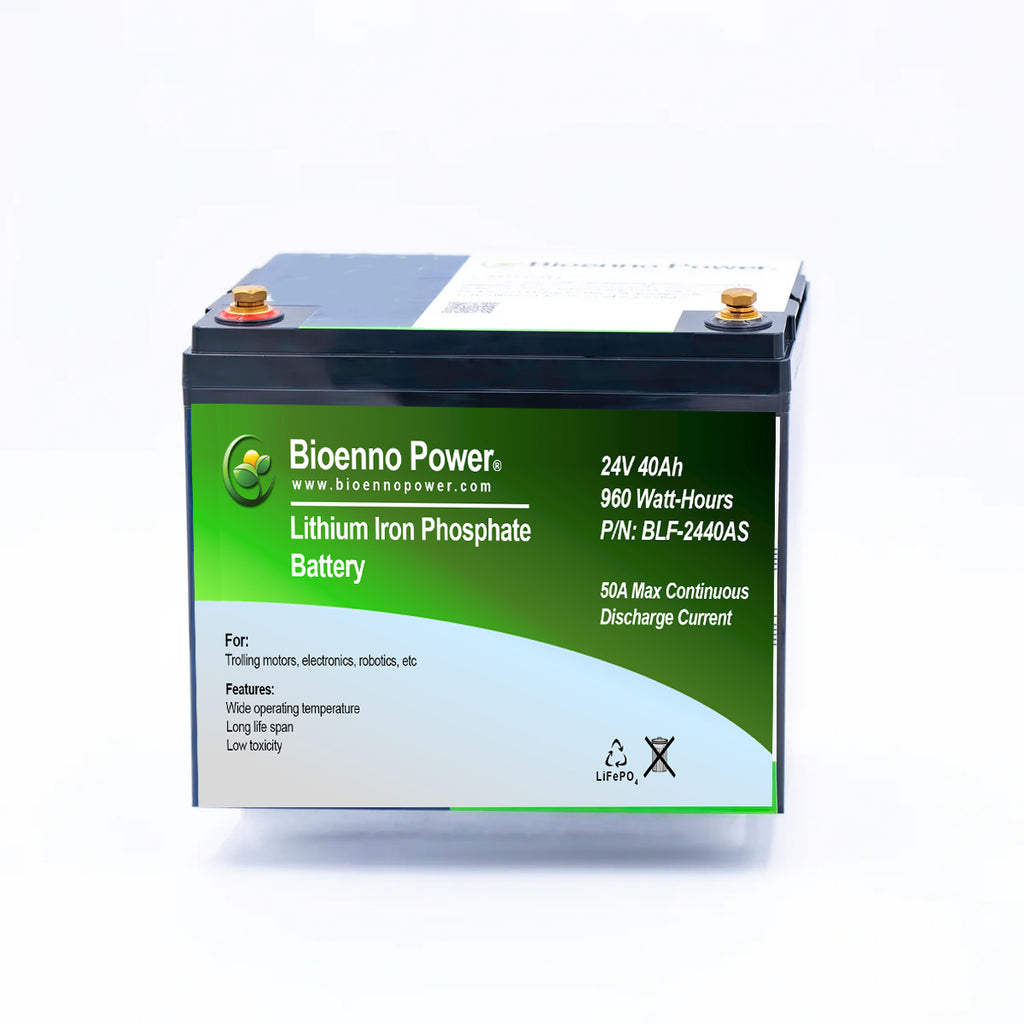

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2440AS is a compact, high-performance 24V 40Ah battery engineered for higher voltage systems. Designed to power trolling motors, electric motors, robotics, and communication devices including Starlink operating at 24V, this ABS-encased battery offers 960W of continuous output. With built-in PCM (Protection Circuit Module), it delivers safe, balanced, and silent performance with no EMI/RFI interference.
Key Features
1. High Voltage, High Output
-
Max Continuous Discharge: 40A
-
Peak Discharge Current: 80A (5 seconds)
-
Max Output Power: 960 Watts
-
Supports high-demand 24V loads in a portable footprint
2. PCM Safety System
-
Integrated protection against overcurrent, overvoltage, undervoltage, and short circuits
-
Automatic cell balancing and onboard charge management
3. Lightweight PVC Design
-
Case Type: ABS
-
Dimensions: 10.3 in. × 6.7 in. × 8.4 in. (260 mm × 170 mm × 212 mm)
-
Weight: 22.3 lbs. (10.1 kg)
-
Nuts and Bolts
4. Charger Compatibility
-
Compatible with Bioenno Power BPC-2410A AC-to-DC charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 10A
-
Connector: Anderson Powerpole (35A)
-
Battery Specifications – BLF-2440AS
-
Voltage: 24V
-
Capacity: 40Ah
-
Max Output Power: 960 Watts
-
Built-in PCM for reliable protection and performance
-
Lightweight design for mobile and field deployments
Benefits
-
Excellent for 24V trolling motors
-
Long service life: 2000+ charge cycles
-
Maintenance-free lithium chemistry
-
Zero EMI/RFI for sensitive electronic environments
Ideal Applications
- Trolling Motors
- Starlink
-
E-bikes and e-scooters
-
Robotics and automation
-
Military communication equipment
-
Field instrumentation and mobile solar kits
Installation Note
