Product Overview

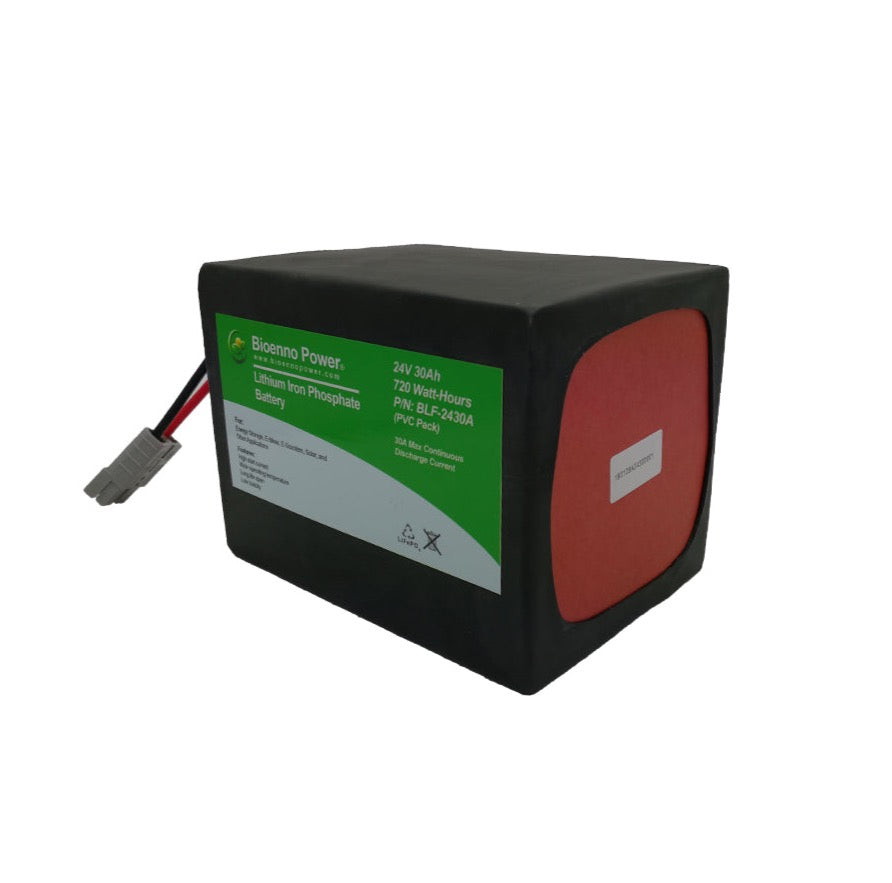

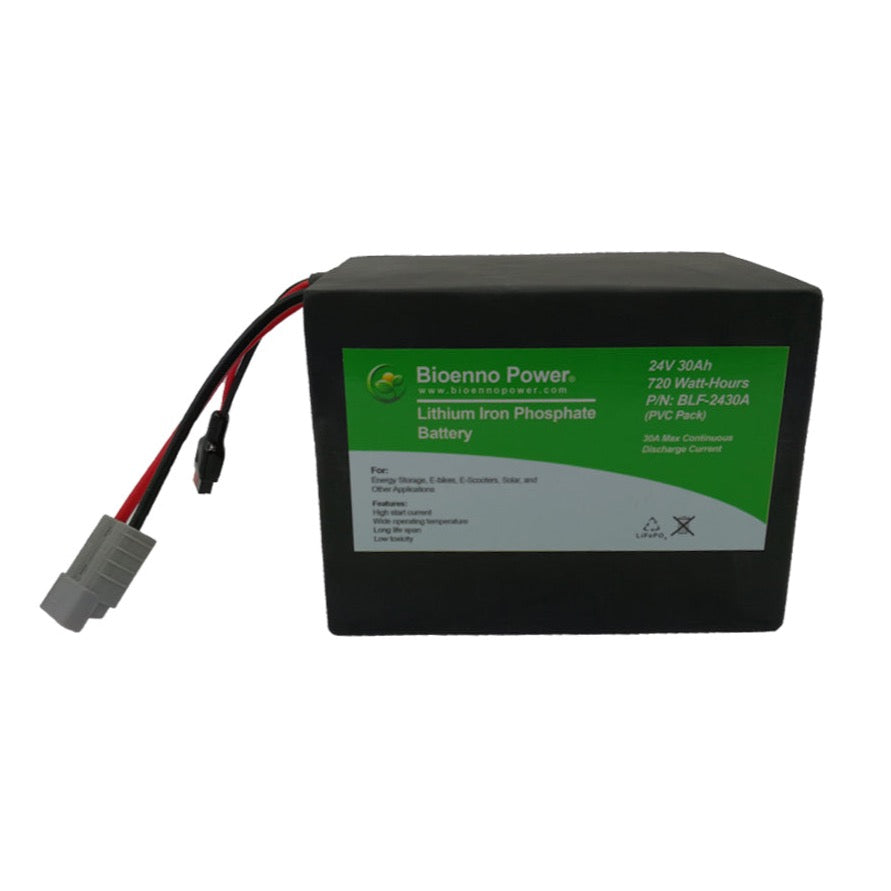

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2430A is a high-performance 24V 30Ah battery engineered for compact, high-voltage power applications. Built with a space-saving PVC pack and Anderson connectors, this battery is ideal for powering 24V motors, e-bikes, e-scooters, robotics, and military communication systems. The integrated PCM ensures safe, efficient operation and protects the battery from electrical faults.
Key Features
1. High-Voltage Output in a Compact Design
-
Max Continuous Discharge: 30A
-
Peak Discharge Current: 60A (5 seconds)
-
Max Continuous Power: 720 Watts
-
Delivers powerful energy output while maintaining a small footprint
2. PCM-Based Safety System
-
Offers protection from overcurrent, overvoltage, undervoltage, and short circuit
-
Integrated cell balancing and charging control circuitry
3. Portable and Durable
-
Case Type: PVC Pack
-
Dimensions: 7.7 in. × 5.6 in. × 5.8 in. (196 mm × 142 mm × 147 mm)
-
Weight: 15.8 lbs. (7.2 kg)
-
Anderson Powerpole connectors: PP45 for charging, SB50 for discharging
4. Charging Compatibility
-

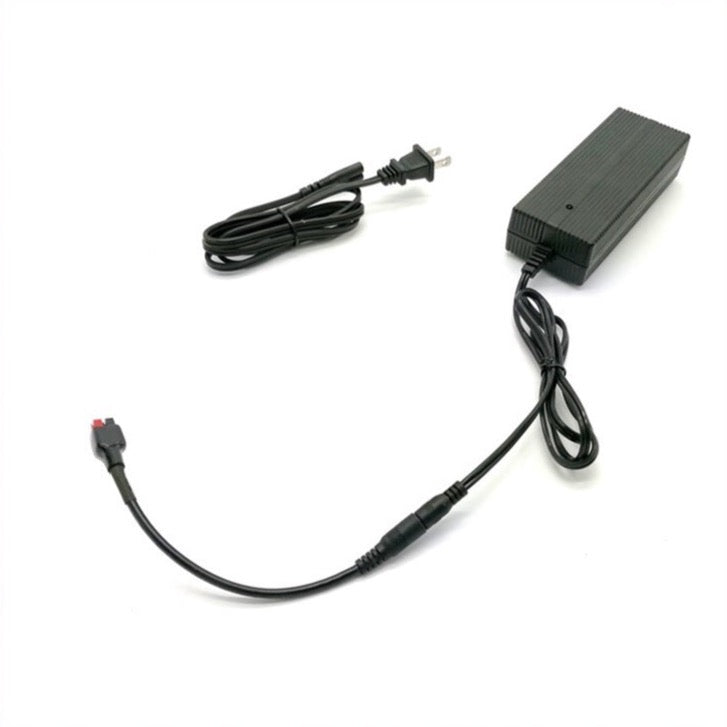

Compatible with Bioenno Power BPC-2404A charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 4A
-
Connector: Anderson Powerpole (50A)
-
Battery Specifications – BLF-2430A
-
Voltage: 24V
-
Capacity: 30Ah
-
Charge Connector: Anderson Powerpole (PP45)
-
Discharge Connector: Anderson Powerpole (SB50)
-
Max Output Power: 720 Watts
-
Built-in PCM for full protection and balanced operation
Benefits
-
Powers high-voltage systems with compact battery size
-
Silent operation—ideal for EMI/RFI-sensitive equipment
-
Long cycle life with over 2000 deep discharges
-
Maintenance-free lithium chemistry with built-in safety features
Ideal Applications
-
Electric scooters and e-bikes
-
Robotics and field automation
-
Military radios and mobile command equipment
-
Off-grid and portable 24V solar systems
Installation Note
Ensure all Anderson connectors are properly secured before use. Tight connections ensure safe, consistent energy delivery.
