Description
User Manual – BLF-1215AS | Material Safety Data Sheet – LiFePO4
Product Overview

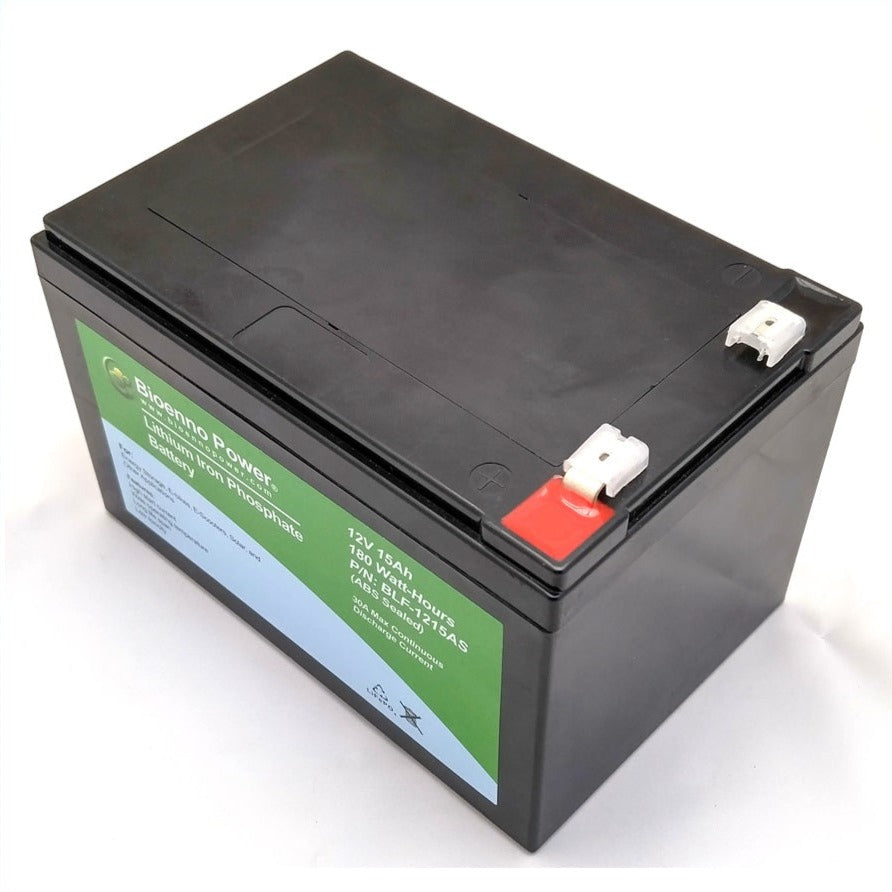

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1215AS is a 12V 15Ah high-performance battery built for power-intensive applications in a compact footprint. Designed as an upgrade to the BLF-1215A with the same compact size as the BLF-1212AS, this ABS-sealed version combines superior energy output with rugged protection and zero-noise operation. This battery includes the BA-QD-PP45 (quick disconnect to Powerpole) and a BA-DCF-PP45 adapter (to let you connect the wall charger to the adapter and to the battery)
Key Features of the 12V 15Ah Lithium Battery
1. Compact High-Discharge Power
-
Max Continuous Discharge: 30A
-
Peak Discharge Current: 60A (2 seconds)
-
Supports higher amperage loads while maintaining long cycle life under varied duty cycles.
2. Integrated PCM Safety
-
Provides full protection through internal cell balancing, short circuit protection, overvoltage/undervoltage safeguards, and integrated charge control.
-
ABS casing ensures durable performance under mobile or field conditions.
3. Silent, Interference-Free Operation
-
No EMI or RFI, making it ideal for radio comms and avionics setups where clean power is critical.
4. Charger Compatibility
-
Compatible with Bioenno Power BPC-1504C charger
-
Specs:
-
Input: 120VAC / 220VAC
-
Output: 14.6VDC at 4A
-
Connector: DC Plug
-
Battery Specifications – BLF-1215AS
-
Voltage: 12V
-
Capacity: 15Ah
-
Max Output Power: 360 Watts
-
Case Type: ABS Sealed
-

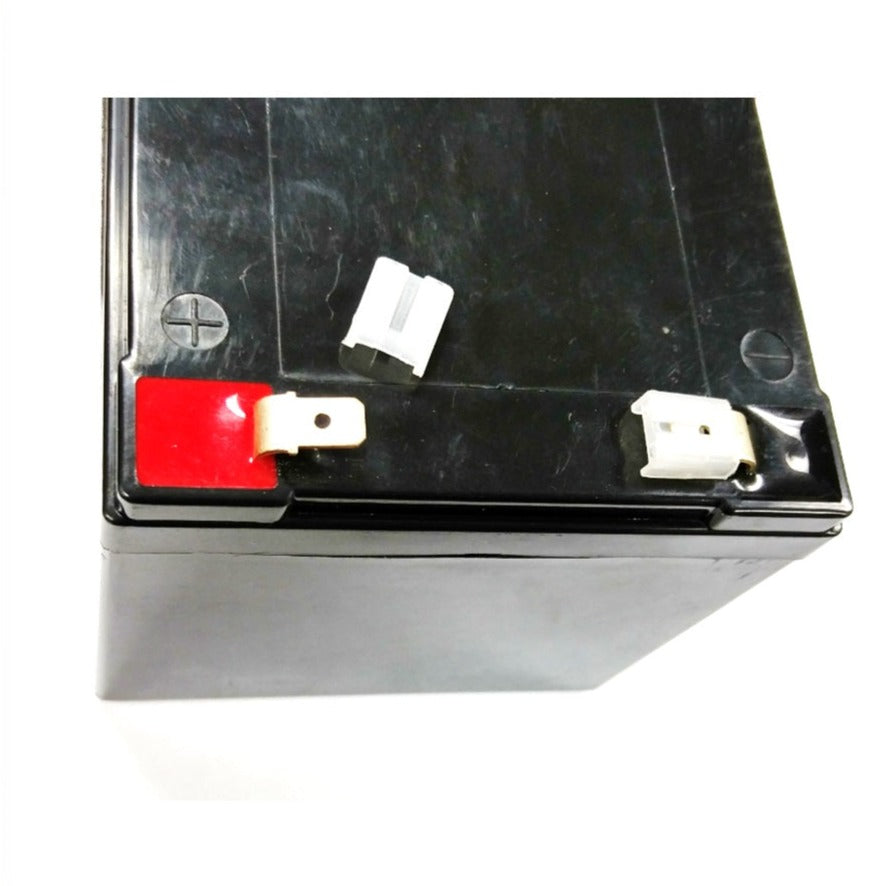

Connectors: Fast-On terminals
-
Dimensions: 6.0 in. × 3.9 in. × 3.8 in. (150 mm × 100 mm × 94 mm)
-
Weight: 4.3 lbs. (1.9 kg)
Benefits
-
Drop-In Replacement: Same size as 12Ah units with increased capacity and output.
-
High Discharge Reliability: Supports demanding use in avionics, comms, or solar systems.
-
Duty-Cycle Versatility: Rated for both intermittent (ham radio) and continuous discharge with cycle life ranging from 1,800 to 3,000+.
Ideal Applications
-
Ham radio transmitters and receivers
-
Sailplane and light aviation avionics
-
Mobile communications and AV setups
-
Off-grid solar and backup power kits
-
Electric scooters and e-bikes
