Description
User Manual – BLF-2450A | Material Safety Data Sheet for LiFePO4
Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2450A is a 24V 50Ah battery designed for high-voltage applications requiring consistent, clean energy output. Compact yet powerful, this PVC-encased unit is ideal for e-scooters, robotics, motors, and 24V field equipment. With a 1200W output and built-in PCM for protection, it provides dependable and safe performance with zero EMI/RFI interference.
Key Features
1. High-Capacity 24V Output
-
Max Continuous Discharge: 50A
-
Peak Discharge Current: 100A (5 seconds)
-
Max Power Output: 1200 Watts
-
Delivers exceptional performance for power-hungry 24V systems
2. Advanced PCM Protection
-
Internal safeguards: overcurrent, overvoltage, undervoltage, and short circuit
-
Integrated cell balancing and charge control for battery health and safety
3. Lightweight, Efficient Build
-
Case Type: PVC Pack
-
Dimensions: 10.5 in. × 6.3 in. × 6.8 in. (266 mm × 160 mm × 172 mm)
-
Weight: 26.2 lbs. (11.9 kg)
-
Charge Connector: Anderson Powerpole (PP45)
-

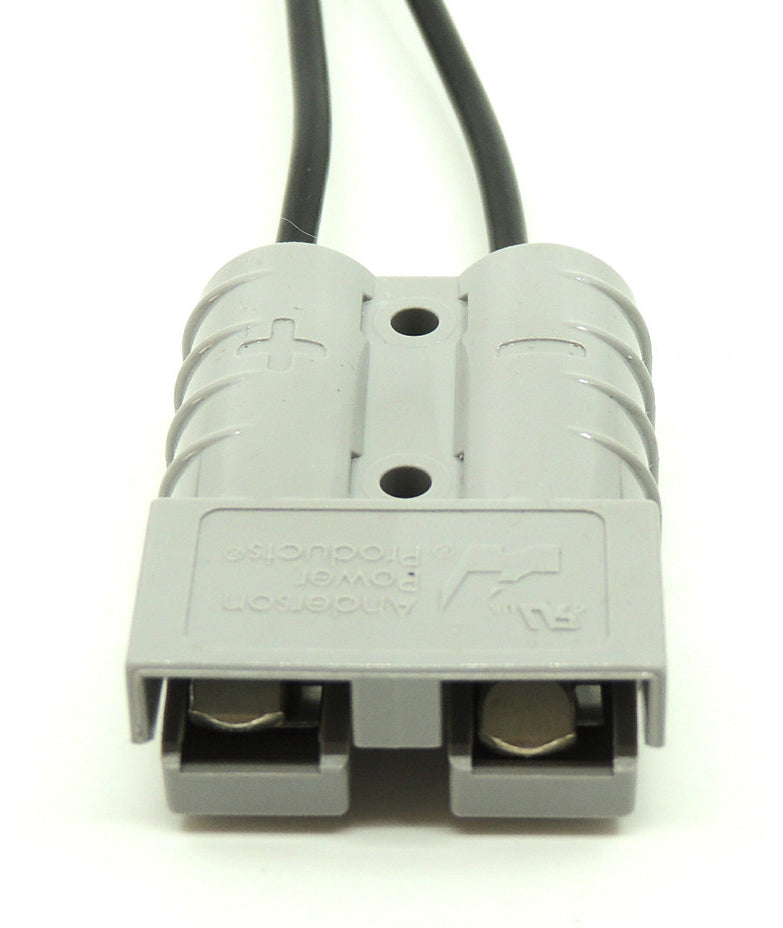

Discharge Connector: Anderson Powerpole (SB50)
4. Compatible Charging Solution
-
Works with Bioenno Power BPC-2410A charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 10A
-
Connector: Anderson Powerpole
-
Battery Specifications – BLF-2450A
-
Voltage: 24V
-
Capacity: 50Ah
-
Max Output Power: 1200 Watts
-
Built-in PCM ensures safety and reliable performance
-
Compact size ideal for space-constrained applications
Benefits
-
Optimized for high-load 24V systems with minimal footprint
-
Long life: 2000+ deep cycles with maintenance-free use
-
No EMI/RFI — suitable for sensitive electronic environments
-
Built-in safeguards reduce risk and enhance operational reliability
Ideal Applications
-
Electric scooters, e-bikes, and motors
-
Robotics and automation platforms
-
Military and tactical radios
-
Solar-powered and mobile field equipment
Installation Note
Confirm all Anderson connections are secure before operation for best performance and safe energy transfer.
