Product Overview

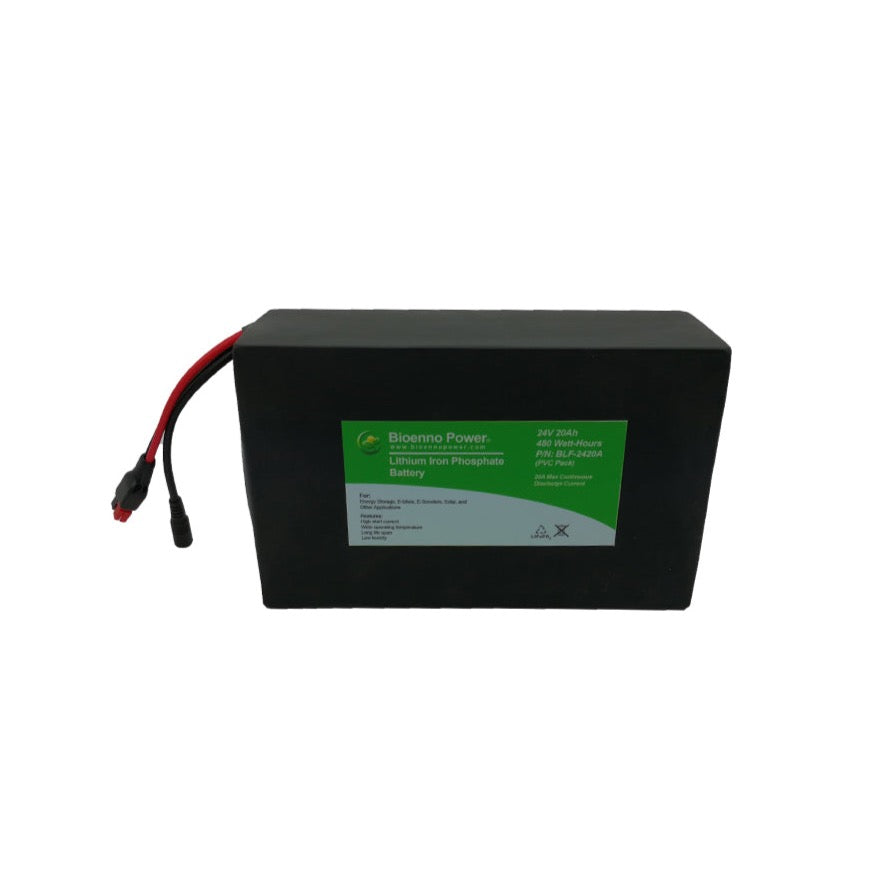

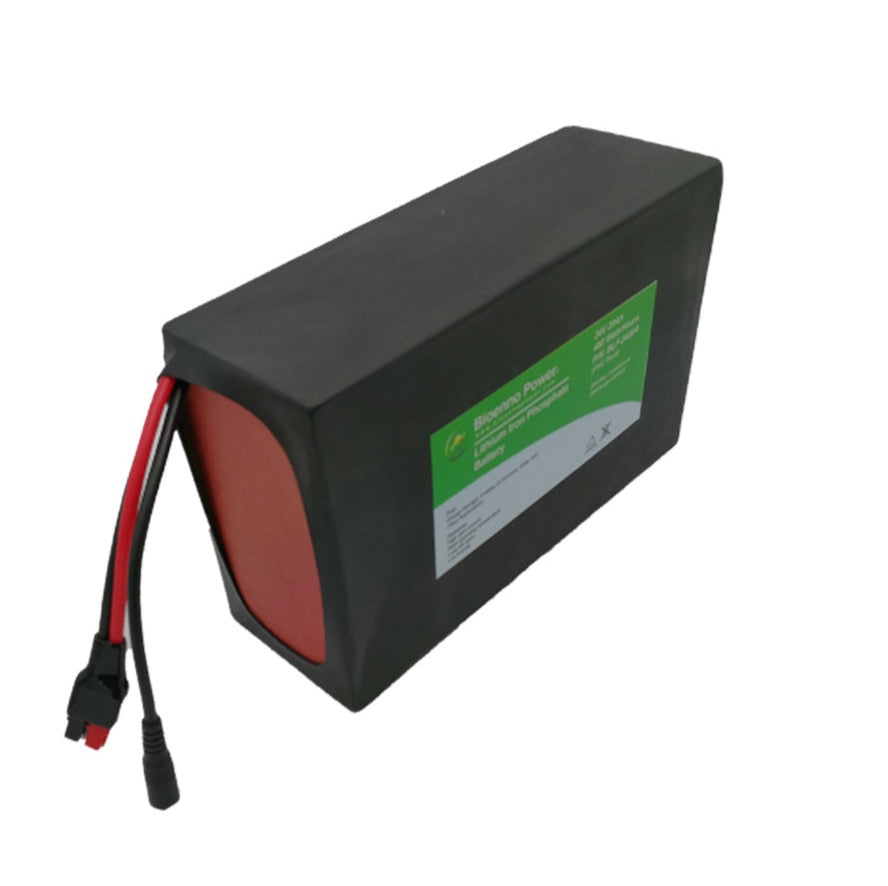

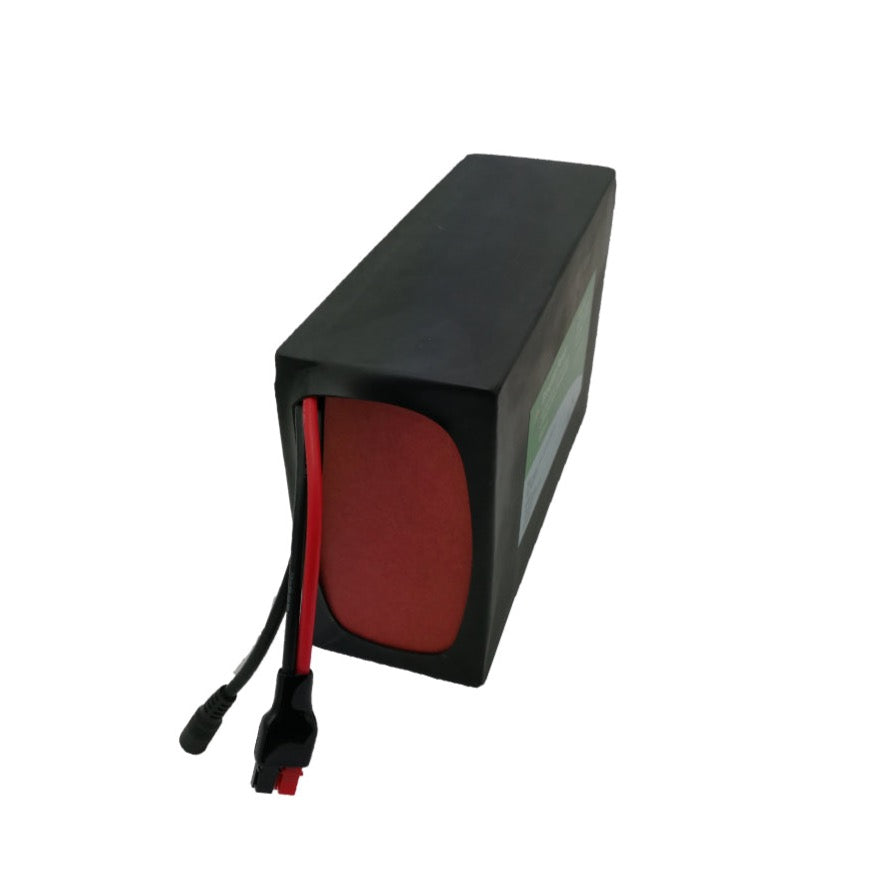

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2420A is a high-efficiency 24V 20Ah battery designed for devices and applications that operate at higher voltages. With a compact PVC case and lightweight design, it is ideal for powering electric scooters, e-bikes, robotics, military communication systems, and scientific instruments. Built-in PCM (Protection Circuit Module) ensures full internal protection and long-term reliability.
Key Features
1. High Voltage, Compact Format
-
Max Continuous Discharge: 20A
-
Peak Discharge Current: 40A (5 seconds)
-
Max Output Power: 480 Watts
-
Designed for 24V systems with tight space and weight constraints
2. Advanced PCM Integration
-
Internal balancing and integrated charge control
-
Protects from overcurrent, undervoltage, overvoltage, and short circuiting
-
Supports high-frequency, sensitive applications without EMI/RFI noise
3. Lightweight and Space-Efficient
-
Case Type: PVC Pack
-
Dimensions: 9.3 in. × 3.2 in. × 5.8 in. (235 mm × 81 mm × 147 mm)
-
Weight: 11.2 lbs. (5.3 kg)
4. Charging Compatibility
-

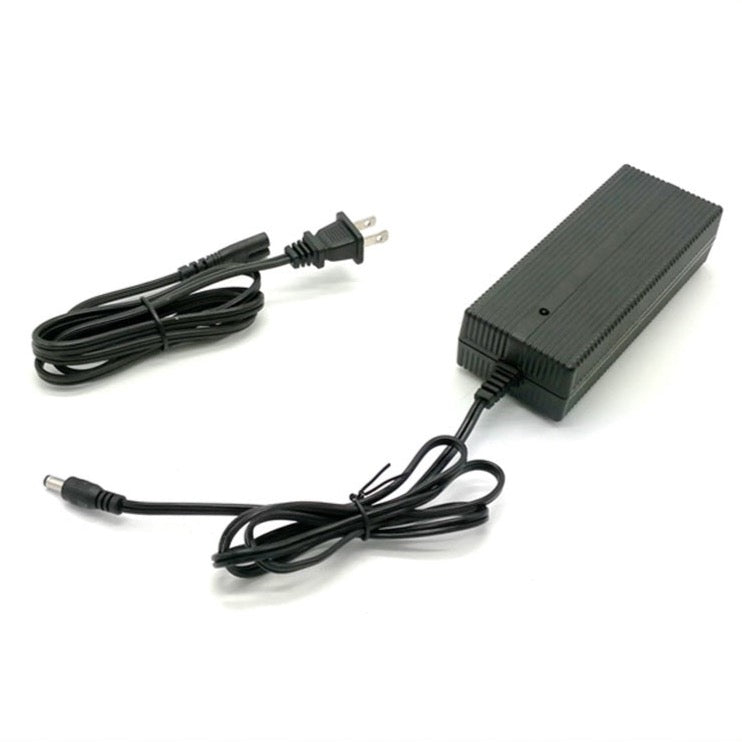

Compatible with Bioenno Power BPC-2404DC charger
-
Input: 110VAC / 220VAC
-
Output: 29.2VDC at 4A
-
Connector: DC Plug
-
Battery Specifications – BLF-2420A
-
Voltage: 24V
-
Capacity: 20Ah
-

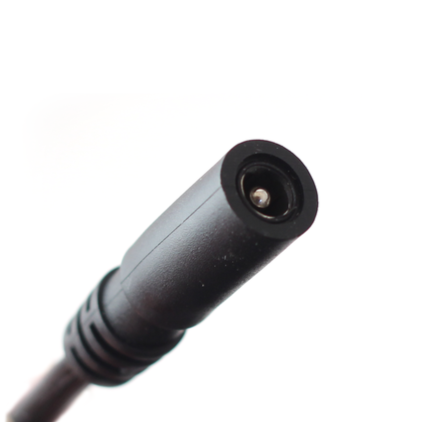

Charge Connector: DC Barrel Plug
-

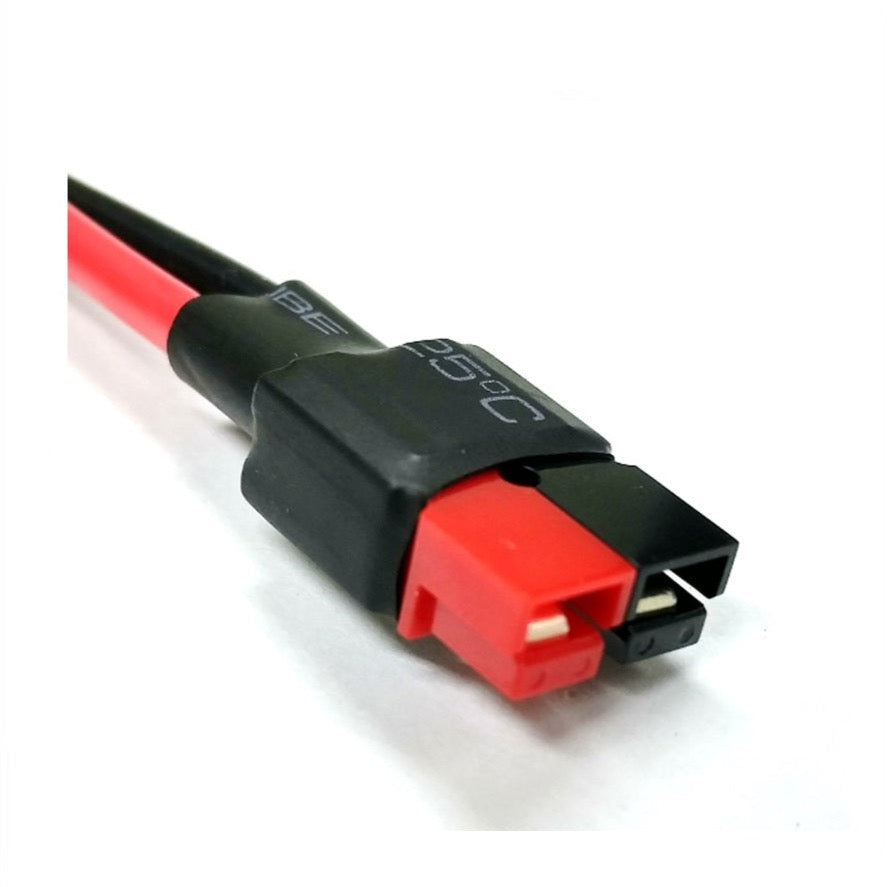

Discharge Connector: Anderson Powerpole (PP45)
-
Max Output Power: 480 Watts
-
Built-in PCM for balanced charging and system protection
Benefits
-
Ideal for robotics, electric vehicles, and military communications
-
Silent, zero-EMI operation for sensitive environments
-
Compact energy solution for high-voltage systems
-
Delivers long service life with 2000+ deep cycles
Ideal Applications
-
E-bikes and electric scooters
-
Autonomous robotics
-
Military radios and field tech
-
Compact solar power systems and scientific field equipment
Installation Note
Ensure all terminals or connectors are secure and wrench-tightened before operation.
