Price: $279.99 (battery only); $299.99 (battery including charger); $499.99( battery+charger+power box)

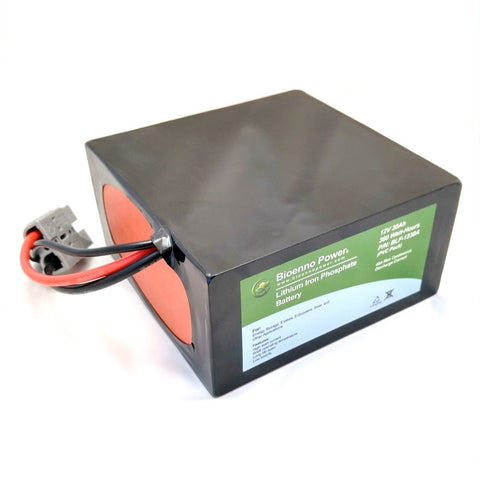

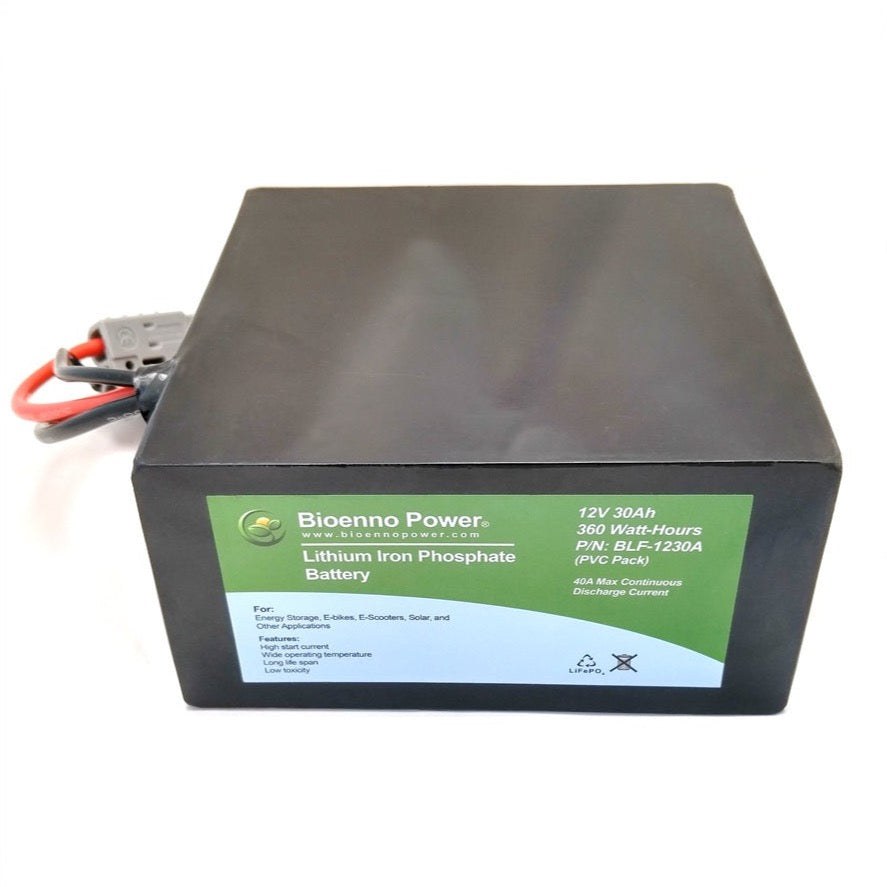

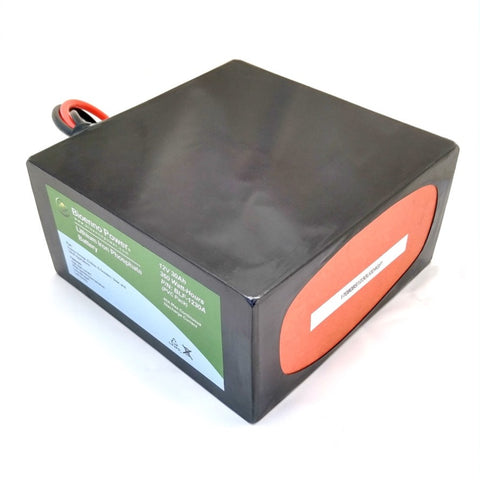

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1230A is a state of the art 12V 30Ah battery. The BLF-1230A is the entry level unit of Bioenno Power's high-power 12V battery line designed for more stationary applications and higher power consumption portable electronics requiring a higher capacity and greater power output battery while demanding a battery which can reliably provide excellent performance over an extended service life. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 6A, with a DC Plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
Model BLF-1230A Battery Specifications
Case Type: PVC Pack

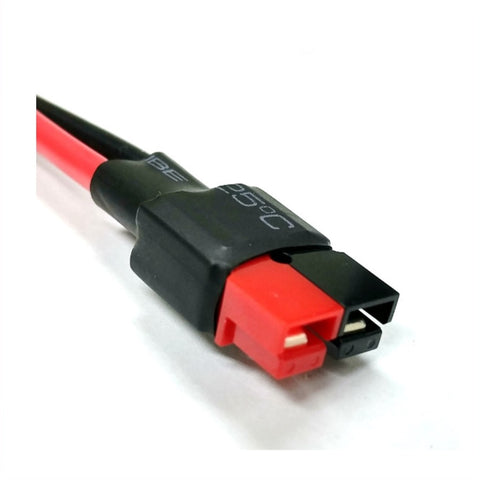

Charge Connector: Anderson Powerpole (PP45)

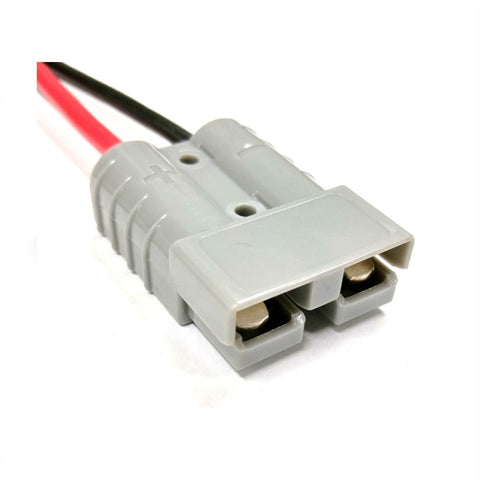

Discharge Connector: Anderson Powerpole (SB50)
Maximum Continuous Discharge Current: 30A (make sure your electrical load consumes less than 30A)
Maximum Peak Discharge Current: 60A (5 sec)
Maximum Power Delivered to Load at 12V: 360 Watts (12V x 30A = 360 Watts)
Dimensions:(L x W x H) 6.5 in. x 6.4 in. x 3.4 in. (165 mm x 162 mm x 86 mm)
Weight: 7.6 lbs. (3.6 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
See FAQ for additional information
Available 110VAC / 220 VAC Charger
Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/120VAC
Output Voltage: 14.6VDC
Connector: Anderson Powerpole
Model Number: BPC-1506A

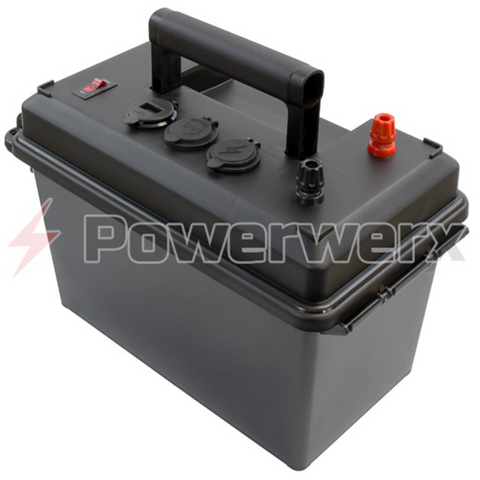

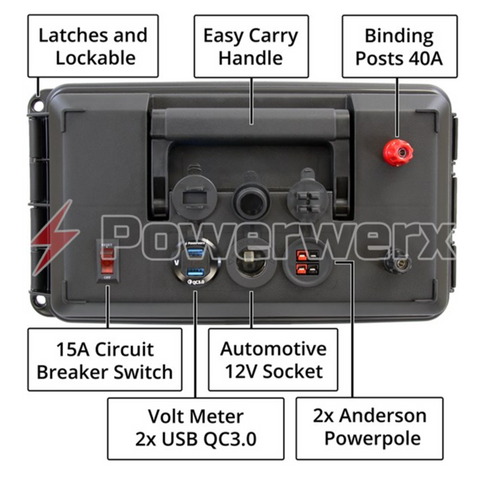

Exterior Dimensions (including binding posts): 9.75 in. H x 7.375 in. W x 13.5 in. L (247.7 mm x 187.3 mm x 342.9 mm)

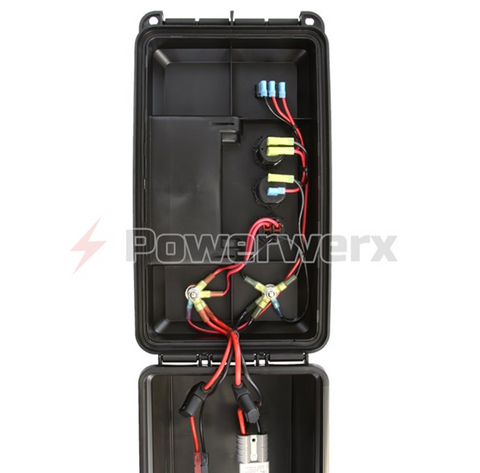

Maximum Interior Dimensions: 5.88 in. H x 5.94 in. W x 11 in. L (149.2 mm x 150.9 mm x 279.4 mm).
Additional height is available in limited areas due to the shape of the lid and wire harness, up to 7.00 in. (187.3 mm).
Power Box can take up to 12 business days to ship.
- Shipping: Standard
- Return/Exchange: 30 Days
- Warranty: See Separate Warranty Page
